32m简支梁Midas模型命令流.docx

;---------------------------------------------------------------------------

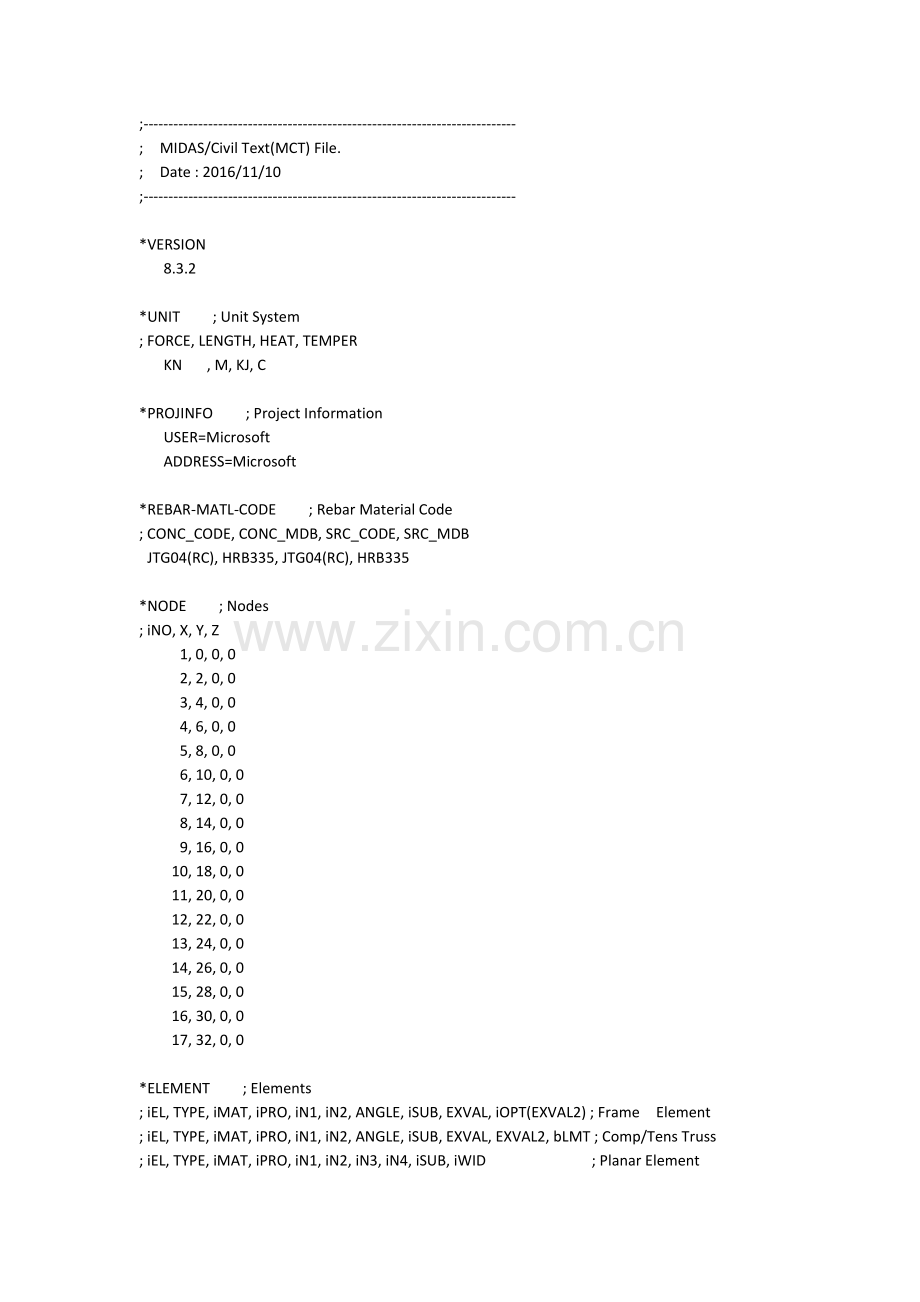

; MIDAS/Civil Text(MCT) File.
; Date : 2016/11/10
;---------------------------------------------------------------------------

*VERSION
8.3.2

*UNIT ; Unit System
; FORCE, LENGTH, HEAT, TEMPER
KN , M, KJ, C

*PROJINFO ; Project Information
USER=Microsoft
ADDRESS=Microsoft

*REBAR-MATL-CODE ; Rebar Material Code
; CONC_CODE, CONC_MDB, SRC_CODE, SRC_MDB
JTG04(RC), HRB335, JTG04(RC), HRB335

*NODE ; Nodes
; iNO, X, Y, Z
1, 0, 0, 0
2, 2, 0, 0
3, 4, 0, 0
4, 6, 0, 0
5, 8, 0, 0
6, 10, 0, 0
7, 12, 0, 0
8, 14, 0, 0
9, 16, 0, 0
10, 18, 0, 0
11, 20, 0, 0
12, 22, 0, 0
13, 24, 0, 0
14, 26, 0, 0
15, 28, 0, 0
16, 30, 0, 0
17, 32, 0, 0

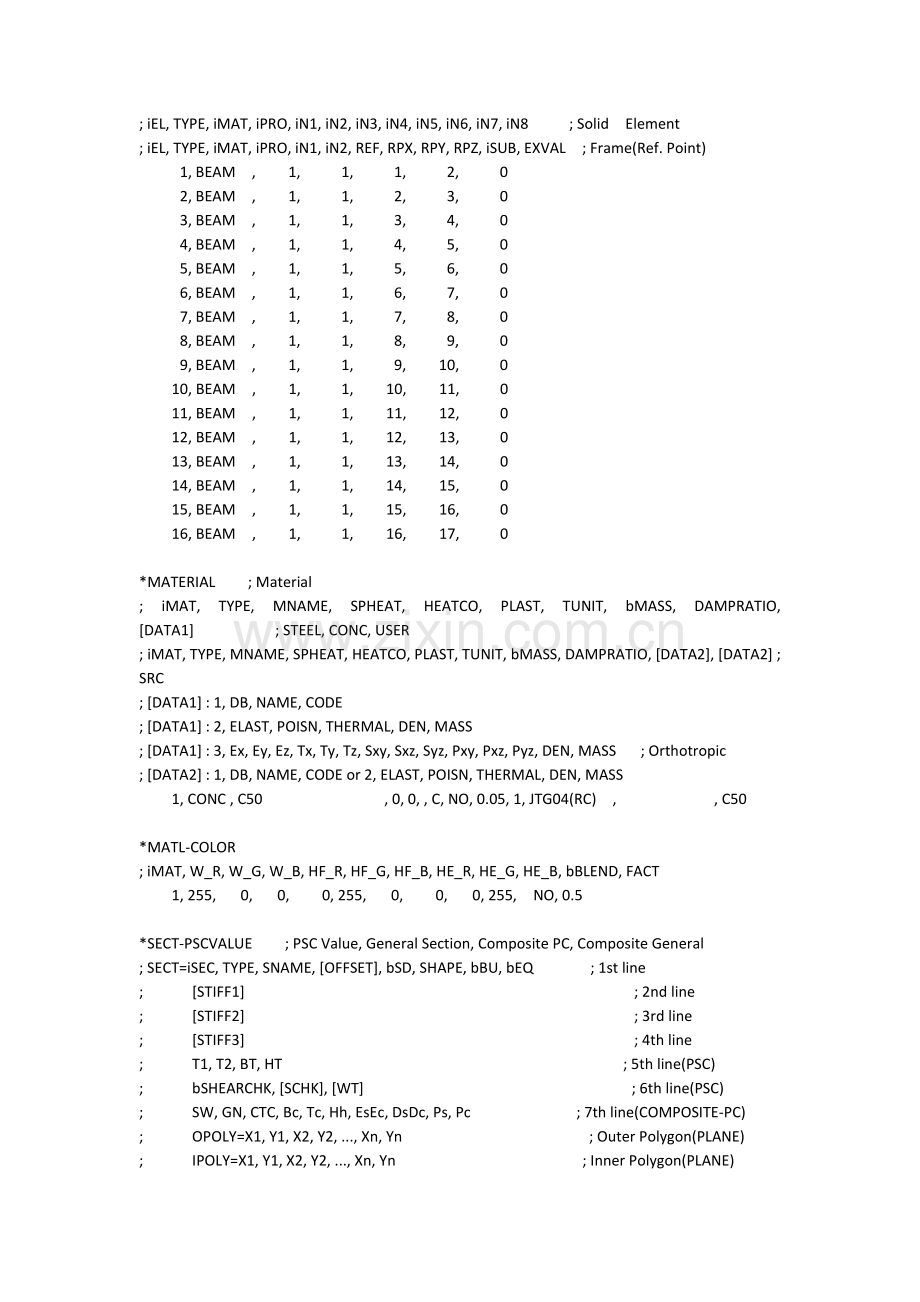

*ELEMENT ; Elements
; iEL, TYPE, iMAT, iPRO, iN1, iN2, ANGLE, iSUB, EXVAL, iOPT(EXVAL2) ; Frame Element
; iEL, TYPE, iMAT, iPRO, iN1, iN2, ANGLE, iSUB, EXVAL, EXVAL2, bLMT ; Comp/Tens Truss
; iEL, TYPE, iMAT, iPRO, iN1, iN2, iN3, iN4, iSUB, iWID ; Planar Element
; iEL, TYPE, iMAT, iPRO, iN1, iN2, iN3, iN4, iN5, iN6, iN7, iN8 ; Solid Element
; iEL, TYPE, iMAT, iPRO, iN1, iN2, REF, RPX, RPY, RPZ, iSUB, EXVAL ; Frame(Ref. Point)
1, BEAM , 1, 1, 1, 2, 0
2, BEAM , 1, 1, 2, 3, 0
3, BEAM , 1, 1, 3, 4, 0
4, BEAM , 1, 1, 4, 5, 0
5, BEAM , 1, 1, 5, 6, 0
6, BEAM , 1, 1, 6, 7, 0
7, BEAM , 1, 1, 7, 8, 0
8, BEAM , 1, 1, 8, 9, 0
9, BEAM , 1, 1, 9, 10, 0
10, BEAM , 1, 1, 10, 11, 0
11, BEAM , 1, 1, 11, 12, 0
12, BEAM , 1, 1, 12, 13, 0
13, BEAM , 1, 1, 13, 14, 0
14, BEAM , 1, 1, 14, 15, 0
15, BEAM , 1, 1, 15, 16, 0
16, BEAM , 1, 1, 16, 17, 0

*MATERIAL ; Material
; iMAT, TYPE, MNAME, SPHEAT, HEATCO, PLAST, TUNIT, bMASS, DAMPRATIO, [DATA1] ; STEEL, CONC, USER
; iMAT, TYPE, MNAME, SPHEAT, HEATCO, PLAST, TUNIT, bMASS, DAMPRATIO, [DATA2], [DATA2] ; SRC
; [DATA1] : 1, DB, NAME, CODE
; [DATA1] : 2, ELAST, POISN, THERMAL, DEN, MASS
; [DATA1] : 3, Ex, Ey, Ez, Tx, Ty, Tz, Sxy, Sxz, Syz, Pxy, Pxz, Pyz, DEN, MASS ; Orthotropic
; [DATA2] : 1, DB, NAME, CODE or 2, ELAST, POISN, THERMAL, DEN, MASS
1, CONC , C50 , 0, 0, , C, NO, 0.05, 1, JTG04(RC) , , C50

*MATL-COLOR
; iMAT, W_R, W_G, W_B, HF_R, HF_G, HF_B, HE_R, HE_G, HE_B, bBLEND, FACT
1, 255, 0, 0, 0, 255, 0, 0, 0, 255, NO, 0.5

*SECT-PSCVALUE ; PSC Value, General Section, Composite PC, Composite General
; SECT=iSEC, TYPE, SNAME, [OFFSET], bSD, SHAPE, bBU, bEQ ; 1st line
; [STIFF1] ; 2nd line
; [STIFF2] ; 3rd line
; [STIFF3] ; 4th line
; T1, T2, BT, HT ; 5th line(PSC)
; bSHEARCHK, [SCHK], [WT] ; 6th line(PSC)
; SW, GN, CTC, Bc, Tc, Hh, EsEc, DsDc, Ps, Pc ; 7th line(COMPOSITE-PC)
; OPOLY=X1, Y1, X2, Y2, ..., Xn, Yn ; Outer Polygon(PLANE)
; IPOLY=X1, Y1, X2, Y2, ..., Xn, Yn ; Inner Polygon(PLANE)
; ...
; IPOLY=X1, Y1, X2, Y2, ..., Xn, Yn ; Inner Polygon(PLANE)
; VERTEX=X1, Y1, X2, Y2, ..., Xn, Yn ; Vertex(General-LINE)
; LINE=VI1, VJ1, dTHIK1, iALIGN1 ; Line(General-LINE)
; ...
; LINE=VIn, VJn, dTHIKn, iALIGNn ; Line(General-LINE)
; LOOP=COUNT1, LIX11, LIX12, ..., LIXn ; Line(General-LINE)
; ...
; LOOP=COUNTn, LIXn1, LIXn2, ..., LIXnn ; Line(General-LINE)
; SECT=iSEC, TYPE, SNAME, [OFFSET2], bSD, SHAPE, iyVAR, izVAR, bEQ ; 1st line - TAPERED
; [STIFF1-I] ; 2nd line
; [STIFF2-I] ; 3rd line
; [STIFF3-I] ; 4th line
; [STIFF1-J] ; 5th line
; [STIFF2-J] ; 6th line
; [STIFF3-J] ; 7th line
; T1-I, T2-I, BT-I, HT-I, T1-J, T2-J, BT-J, HT-J ; 8th line(PSC)
; bSHEARCHK, [SCHK-I], [WT-I], [SCHK-J], [WT-J] ; 9rd line(PSC)
; OPOLY=bI, X1, Y1, X2, Y2, ..., Xn, Yn ; Outer Polygon(PLANE)
; IPOLY=bI, X1, Y1, X2, Y2, ..., Xn, Yn ; Inner Polygon(PLANE)
; ...
; IPOLY=bI, X1, Y1, X2, Y2, ..., Xn, Yn ; Inner Polygon(PLANE)
; VERTEX=bI, X1, Y1, X2, Y2, ..., Xn, Yn ; Vertex(General-LINE)
; LINE=bI, VI1, VJ1, dTHIK1, iALIGN1 ; Line(General-LINE)
; ...
; LINE=bI, VIn, VJn, dTHIKn, iALIGNn ; Line(General-LINE)
; LOOP=bI, COUNT1, LIX11, LIX12, ..., LIXn ; Line(General-LINE)
; ...
; LOOP=bI, COUNTn, LIXn1, LIXn2, ..., LIXnn ; Line(General-LINE)
; SECT=iSEC, TYPE, SNAME, [OFFSET], bSD, SHAPE, bBU, bEQ, BPRT ; 1st line - COMPOSITE-GEN
; [PART1] ; 2nd line
; [PART2] ; 3rd line
; ...
; SECT=iSEC, TYPE, SNAME, [OFFSET2], bSD, SHAPE, iyVAR, izVAR, bEQ, PARTNUM ; 1st line - COMPOSITE-GEN(TAPERED)
; [PART1]-I ; 2nd line
; [PART2]-I ; next lines
; ...
; [PART1]-J ; next lines
; [PART2]-J ; next lines
; ...
; [OFFSET] : OFFSET, iCENT, iREF, iHORZ, HUSER, iVERT, VUSER
; [OFFSET2]: OFFSET, iCENT, iREF, iHORZ, HUSERI, HUSERJ, iVERT, VUSERI, VUSERJ
; [STIFF1] : AREA, ASy, ASz, Ixx, Iyy, Izz
; [STIFF2] ; Cyp, Cym, Czp, Czm, Qyb, Qzb, PERI_OUT, PERI_IN, Cy, Cz
; [STIFF3] ; Y1, Y2, Y3, Y4, Z1, Z2, Z3, Z4
; [SCHK] : Z1, Z3, bAUTO_QY1, QY1, bAUTO_QY2, QY2, bAUTO_QY3, QY3
; [WT] : TOR, bAUTO_SHR1, SHR1, bAUTO_SHR2, SHR2, bAUTO_SHR3, SHR3
; [PART] : PART=part_num
; : [STIFF1]
; : [STIFF2]
; : [STIFF3]
; : [STIFF1] ; [STIFF1] of Part Sum.
; : [STIFF2] ; [STIFF2] of Part Sum.
; : [STIFF3] ; [STIFF3] of Part Sum.
; : OPOLY=(bI-Tapered), X1, Y1, X2, Y2, ..., Xn, Yn ; Outer Polygon(PLANE)
; : IPOLY=(bI-Tapered), X1, Y1, X2, Y2, ..., Xn, Yn ; Inner Polygon(PLANE)
; : ...
; : IPOLY=(bI-Tapered), X1, Y1, X2, Y2, ..., Xn, Yn ; Inner Polygon(PLANE)
; : VERTEX=(bI-Tapered), X1, Y1, X2, Y2, ..., Xn, Yn ; Vertex(General-LINE)
; : LINE=(bI-Tapered), VI1, VJ1, dTHIK1, iALIGN1 ; Line(General-LINE)
; : ...
; : LINE=(bI-Tapered), VIn, VJn, dTHIKn, iALIGNn ; Line(General-LINE)
; : LOOP=(bI-Tapered), COUNT1, LIX11, LIX12, ..., LIXn ; Line(General-LINE)
; : ...
; : LOOP=(bI-Tapered), COUNTn, LIXn1, LIXn2, ..., LIXnn ; Line(General-LINE)
SECT= 1, VALUE , 横截面 , CC, 0, 0, 0, 0, 0, 0, NO, GEN, YES, YES
0.796676, 0.358672, 0.388304, 0.010861, 0.508491, 0.10378
0.965071, 0.954929, 0.766431, 1.76357, 1.55509, 0.0367495, 8.67955, 0, 0.954929, 1.76357
-0.954929, 0.965071, 0.0850711, -0.0949289, 0.766431, 0.766431, -1.76357, -1.76357
OPOLY=-0.954929, 0.766431, -0.954929, 0.606431, -0.374929, 0.576431
-0.0949289, 0.483031, -0.0949289, -1.76357, 0.0850711, -1.76357
0.0850711, 0.476431, 0.385071, 0.576431, 0.965071, 0.606431
0.965071, 0.766431

*SECT-COLOR
; iSEC, W_R, W_G, W_B, HF_R, HF_G, HF_B, HE_R, HE_G, HE_B, bBLEND, FACT
1, 255, 0, 0, 0, 255, 0, 0, 0, 255, NO, 0.5

*DGN-SECT-PSCVALUE ; Design Section of PSC Value
; SECT=iSEC, TYPE, SNAME, [OFFSET], bSD, SHAPE, bBU, bEQ ; 1st line
; [STIFF1] ; 2nd line
; [STIFF2] ; 3rd line
; [STIFF3] ; 4th line
; T1, T2, BT, HT ; 5th line(PSC)
; bSHEARCHK, [SCHK], [WT] ; 6th line(PSC)
; SW, GN, CTC, Bc, Tc, Hh, EsEc, DsDc, Ps, Pc ; 7th line(COMPOSITE-PC)
; OPOLY=X1, Y1, X2, Y2, ..., Xn, Yn ; Outer Polygon(PLANE)
; IPOLY=X1, Y1, X2, Y2, ..., Xn, Yn ; Inner Polygon(PLANE)
; ...
; IPOLY=X1, Y1, X2, Y2, ..., Xn, Yn ; Inner Polygon(PLANE)
; VERTEX=X1, Y1, X2, Y2, ..., Xn, Yn ; Vertex(General-LINE)
; LINE=VI1, VJ1, dTHIK1, iALIGN1 ; Line(General-LINE)
; ...
; LINE=VIn, VJn, dTHIKn, iALIGNn ; Line(General-LINE)
; LOOP=COUNT1, LIX11, LIX12, ..., LIXn ; Line(General-LINE)
; ...
; LOOP=COUNTn, LIXn1, LIXn2, ..., LIXnn ; Line(General-LINE)
; SECT=iSEC, TYPE, SNAME, [OFFSET2], bSD, SHAPE, iyVAR, izVAR, bEQ ; 1st line - TAPERED
; [STIFF1-I] ; 2nd line
; [STIFF2-I] ; 3rd line
; [STIFF3-I] ; 4th line
; [STIFF1-J] ; 5th line
; [STIFF2-J] ; 6th line
; [STIFF3-J] ; 7th line
; T1-I, T2-I, BT-I, HT-I, T1-J, T2-J, BT-J, HT-J ; 8th line(PSC)
; bSHEARCHK, [SCHK-I], [WT-I], [SCHK-J], [WT-J] ; 9rd line(PSC)
; OPOLY=bI, X1, Y1, X2, Y2, ..., Xn, Yn ; Outer Polygon(PLANE)
; IPOLY=bI, X1, Y1, X2, Y2, ..., Xn, Yn ; Inner Polygon(PLANE)
; ...
; IPOLY=bI, X1, Y1, X2, Y2, ..., Xn, Yn ; Inner Polygon(PLANE)
; VERTEX=bI, X1, Y1, X2, Y2, ..., Xn, Yn ; Vertex(General-LINE)
; LINE=bI, VI1, VJ1, dTHIK1, iALIGN1 ; Line(General-LINE)
; ...
; LINE=bI, VIn, VJn, dTHIKn, iALIGNn ; Line(General-LINE)
; LOOP=bI, COUNT1, LIX11, LIX12, ..., LIXn ; Line(General-LINE)
; ...
; LOOP=bI, COUNTn, LIXn1, LIXn2, ..., LIXnn ; Line(General-LINE)
; SECT=iSEC, TYPE, SNAME, [OFFSET], bSD, SHAPE, bBU, bEQ, BPRT ; 1st line - COMPOSITE-GEN
; [PART1] ; 2nd line
; [PART2] ; 3rd line
; ...
; SECT=iSEC, TYPE, SNAME, [OFFSET2], bSD, SHAPE, iyVAR, izVAR, bEQ, PARTNUM ; 1st line - COMPOSITE-GEN(TAPERED)
; [PART1]-I ; 2nd line
; [PART2]-I ; next lines
; ...
; [PART1]-J ; next lines
; [PART2]-J ; next lines
; ...
; [OFFSET] : OFFSET, iCENT, iREF, iHORZ, HUSER, iVERT, VUSER
; [OFFSET2]: OFFSET, iCENT, iREF, iHORZ, HUSERI, HUSERJ, iVERT, VUSERI, VUSERJ
; [STIFF1] : AREA, ASy, ASz, Ixx, Iyy, Izz
; [STIFF2] ; Cyp, Cym, Czp, Czm, Qyb, Qzb, PERI_OUT, PERI_IN, Cy, Cz
; [STIFF3] ; Y1, Y2, Y3, Y4, Z1, Z2, Z3, Z4
; [SCHK] : Z1, Z3, bAUTO_QY1, QY1, bAUTO_QY2, QY2, bAUTO_QY3, QY3
; [WT] : TOR, bAUTO_SHR1, SHR1, bAUTO_SHR2, SHR2, bAUTO_SHR3, SHR3
; [PART] : PART=part_num
; : [STIFF1]
; : [STIFF2]
; : [STIFF3]
; : [STIFF1] ; [STIFF1] of Part Sum.
; : [STIFF2] ; [STIFF2] of Part Sum.
; : [STIFF3] ; [STIFF3] of Part Sum.
; : OPOLY=(bI-Tapered), X1, Y1, X2, Y2, ..., Xn, Yn ; Outer Polygon(PLANE)
; : IPOLY=(bI-Tapered), X1, Y1, X2, Y2, ..., Xn, Yn ; Inner Polygon(PLANE)
; : ...
; : IPOLY=(bI-Tapered), X1, Y1, X2, Y2, ..., Xn, Yn ; Inner Polygon(PLANE)
; : VERTEX=(bI-Tapered), X1, Y1, X2, Y2, ..., Xn, Yn ; Vertex(General-LINE)
; : LINE=(bI-Tapered), VI1, VJ1, dTHIK1, iALIGN1 ; Line(General-LINE)
; : ...
; : LINE=(bI-Tapered), VIn, VJn, dTHIKn, iALIGNn ; Line(General-LINE)
; : LOOP=(bI-Tapered), COUNT1, LIX11, LIX12, ..., LIXn ; Line(General-LINE)
; : ...
; : LOOP=(bI-Tapered), COUNTn, LIXn1, LIXn2, ..., LIXnn ; Line(General-LINE)
SECT= 1, VALUE , 横截面 , CC, 0, 0, 0, 0, 0, 0, NO, GEN, YES, YES
0.796676, 0.358672, 0.388304, 0.010861, 0.508491, 0.10378
0.965071, 0.954929, 0.766431, 1.76357, 1.55509, 0.0367495, 8.67955, 0, 0.954929, 1.76357
-0.954929, 0.965071, 0.0850711, -0.0949289, 0.766431, 0.766431, -1.76357, -1.76357
OPOLY=-0.954929, 0.766431, -0.954929, 0.606431, -0.374929, 0.576431
-0.0949289, 0.483031, -0.0949289, -1.76357, 0.0850711, -1.76357
0.0850711, 0.476431, 0.385071, 0.576431, 0.965071, 0.606431
0.965071, 0.766431

*STLDCASE ; Static Load Cases
; LCNAME, LCTYPE, DESC
自重 , D ,
二期 , D ,

*CONSTRAINT ; Supports
; NODE_LIST, CONST(Dx,Dy,Dz,Rx,Ry,Rz), GROUP
1, 101101,
17, 001101,

*USE-STLD, 自重

; *SELFWEIGHT, X, Y, Z, GROUP
*SELFWEIGHT, 0, 0, -1.76,

; End of data for load case [自重] -------------------------

*USE-STLD, 二期

*BEAMLOAD ; Element Beam Loads
; ELEM_LIST, CMD, TYPE, DIR, bPROJ, [ECCEN], [VALUE], GROUP
; ELEM_LIST, CMD, TYPE, TYPE, DIR, V
