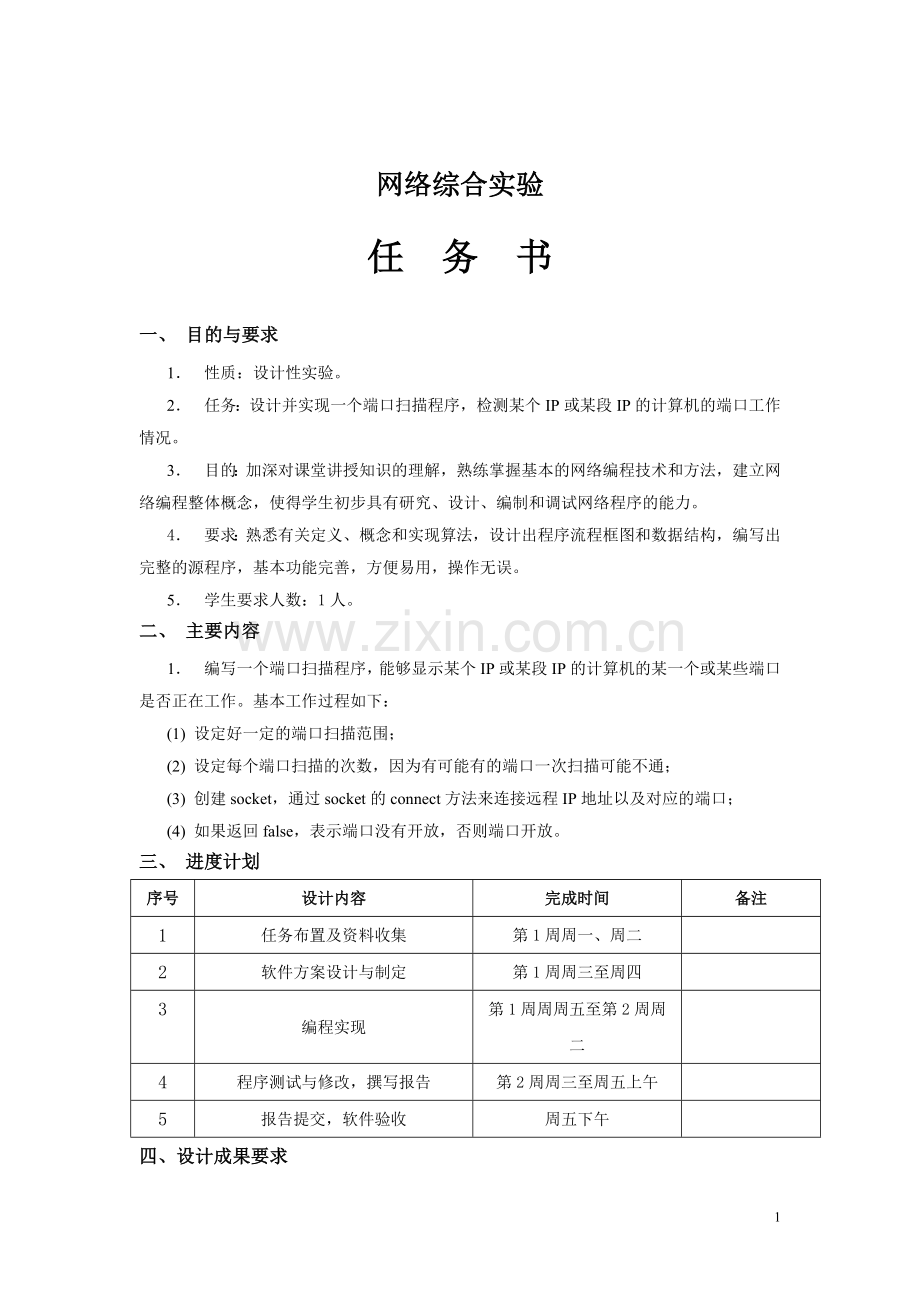

网络综合实验任务书一、目的与要求 1．性质：设计性实验。 2．任务：设计并实现一个端口扫描程序，检测某个IP或某段IP的计算机的端口工作情况。 3．目的：加深对课堂讲授知识的理解，熟练掌握基本的网络编程技术和方法，建立网络编程整体概念，使得学生初步具有研究、设计、编制和调试网络程序的能力。 4．要求：熟悉有关定义、概念和实现算法，设计出程序流程框图和数据结构，编写出完整的源程序，基本功能完善，方便易用，操作无误。 5．学生要求人数：1人。二、主要内容 1．编写一个端口扫描程序，能够显示某个IP或某段IP的计算机的某一个或某些端口是否正在工作。基本工作过程如下： (1) 设定好一定的端口扫描范围； (2) 设定每个端口扫描的次数，因为有可能有的端口一次扫描可能不通； (3) 创建socket，通过socket的connect方法来连接远程IP地址以及对应的端口； (4) 如果返回false，表示端口没有开放，否则端口开放。三、进度计划序号设计内容完成时间备注 1 任务布置及资料收集第1周周一、周二 2 软件方案设计与制定第1周周三至周四 3 编程实现第1周周周五至第2周周二 4 程序测试与修改，撰写报告第2周周三至周五上午 5 报告提交，软件验收周五下午四、设计成果要求 1．完成规定的实验任务，保质保量； 2．完成综合实验报告，要求格式规范，内容具体而翔实，应体现自身所做的工作，注重对实验思路的归纳和对问题解决过程的总结。五、考核方式 1．平时成绩＋验收答辩＋实验报告； 2．五级分制。学生姓名：指导教师： 2009 年 6月8 日一、综合实验的目的与要求 1．目的：加深对课堂讲授知识的理解，熟练掌握基本的网络编程技术和方法，建立网络编程整体概念，加深对JAVA编程语言的使用，促进编程能力的提高，同时为网络编程打下一个比较好的基础。同时对实验的过程要有完全的了解。 2. 要求：熟悉有关定义、概念和实现算法，设计出程序流程框图和数据结构，编写出完整的源程序，基本功能完善，方便易用，操作无误。二、综合实验正文 1．编程语言的选择针对编写的是端口扫描的程序，所以我选择了JAVA编程，因为要简单而方便的试验端口扫描的功能。 2．端口扫描实现的功能是：显示某个IP或某段IP的计算机的某一个或某些端口是否正在工作 2．1 如何选择IP段和端口创建socket，通过socket的connect方法来连接远程IP地址以及对应的端口。而我使用的是socket函数来实现端口的扫描和IP地址的选择扫描。 2．2 如何实现快速扫描端口通过实现多线程，当一个IP或者一个端口同时分配多个线程进行扫描，速度会比单线程扫描快许多。 2．3 显示扫描结果可以在使用JAVA编写的时候，可以通过使用JScrollPane控件实现显示结果。 2．4 实现要求功能之余美化外观 3．创建应用程序界面 3．1 建立主窗体，“JAVA端口扫描器” 图1-1 3．2 IP地址的输入部分图1-2 3．3 端口部分，其中包括指定的端口和指定扫描的端口范围图1-3 3．4 多线程的实现和延时的控制部分图1-4 3．5 增加的保存及快捷键功能图1-5 4．扫描的整个过程 4．1 填写IP地址 192.168.1.100—192.168.1.120 4．2 填写端口扫描的范围为1—300 4．3 线程数选择为100 4．4 扫描结果如下图1-6 三．端口扫描的主要部分程序如下 import .*; import java.io.*; import java.awt.*; import java.awt.event.*; import javax.swing.*; /* *实现扫描的主体程序 */ public class ThreadScan{ public static JFrame main=new JFrame("JAVA端口扫描器"); //显示扫描结果 public static JTextArea Result=new JTextArea("",4,40); //滚动条面板 public static JScroll PaneresultPane = newJScrollPane(Result,JScrollPane.VERTICAL_SCROLLBAR_AS_NEEDED, JScrollPane.HORIZONTAL_SCROLLBAR_AS_NEEDED; //输入主机名文本框 public static JTextField hostname=new JTextField("localhost",8); //输入ip地址前3位的输入框 public static JTextField fromip1=new JTextField("0",3); //输入ip地址4~6位的输入框 public static JTextField fromip2=new JTextField("0",3); //输入ip地址7~9位的输入框 public static JTextField fromip3=new JTextField("0",3); //输入起始ip地址最后4位的输入框 public static JTextField fromip4=new JTextField("0",3); //输入目标ip地址最后4位的输入框 public static JTextField toip=new JTextField("0",3); //输入最小端口的输入框 public static JTextField minPort=new JTextField("0",4); //输入最大端口的输入框 public static JTextField maxPort=new JTextField("1000",4); //输入最大线程数量的输入框 public static JTextField maxThread=new JTextField("100",3); //错误提示框 public static JDialog DLGError=new JDialog(main,"错误!"); public static JLabel DLGINFO=new JLabel(""); public static JLabel type=new JLabel("请选择："); //扫描类型 public static JRadioButton radioIp = new JRadioButton("IP地址："); public static JRadioButton radioHost = new JRadioButton("主机名：",true); //单选框组 public static ButtonGroup group = new ButtonGroup(); public static JLabel P1=new JLabel("端口范围:"); public static JLabel P2=new JLabel("~"); public static JLabel P3=new JLabel("~"); public static JLabel Pdot1 = new JLabel("."); public static JLabel Pdot2 = new JLabel("."); public static JLabel Pdot3 = new JLabel("."); public static JLabel TNUM=new JLabel("线程数:"); public static JLabel RST=new JLabel("扫描结果: "); public static JLabel con=new JLabel(" "); //定义按钮 public static JButton OK = new JButton("确定"); public static JButton Submit = new JButton("开始扫描"); public static JButton Cancel = new JButton("退出"); public static JButton saveButton = new JButton("保存扫描结果"); //菜单栏 public static JMenuBar myBar = new JMenuBar(); public static JMenu myMenu = new JMenu("文件(F)"); public static JMenuItem saveItem = new JMenuItem("保存扫描结果(S)"); public static JMenuItem exitItem = new JMenuItem("退出(Q)"); public static void main(String[] args){ main.setSize(500,400); main.setLocation(300,300); main.setResizable(false); main.setLayout(new GridBagLayout()); main.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); DLGError.setSize(300,100); DLGError.setLocation(400,400); //添加“菜单栏” myMenu.add(saveItem); myMenu.add(exitItem); myBar.add(myMenu); main.setJMenuBar(myBar); //设置热键 myMenu.setMnemonic('F'); saveItem.setMnemonic ('S'); //为“另存为”组件设置快捷键为ctrl+s saveItem.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_S,InputEvent.CTRL_MASK)); exitItem.setMnemonic('Q'); exitItem.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_E,InputEvent.CTRL_MASK)); //采用表格包型布局 Container mPanel = main.getContentPane(); GridBagConstraints c = new GridBagConstraints(); c.insets = new Insets(10,0,0,10); c.gridx = 0; c.gridy = 0; c.gridwidth = 10; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(type,c); group.add(radioIp); group.add(radioHost); c.gridx = 0; c.gridy = 1; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(radioIp,c); c.gridx = 1; c.gridy = 1; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(fromip1,c); c.gridx = 2; c.gridy = 1; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(Pdot1,c); c.gridx = 3; c.gridy = 1; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(fromip2,c); c.gridx = 4; c.gridy = 1; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(Pdot2,c); c.gridx = 5; c.gridy = 1; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(fromip3,c); c.gridx = 6; c.gridy = 1; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(Pdot3,c); c.gridx = 7; c.gridy = 1; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(fromip4,c); c.gridx = 8; c.gridy = 1; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(P2,c); c.gridx = 9; c.gridy = 1; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(toip,c); c.gridx = 0; c.gridy = 2; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(radioHost,c); c.gridx = 1; c.gridy = 2; c.gridwidth = 3; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(hostname,c); c.gridx = 0; c.gridy = 3; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(P1,c); c.gridx = 1; c.gridy = 3; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(minPort,c); c.gridx = 2; c.gridy = 3; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(P3,c); c.gridx = 3; c.gridy = 3; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(maxPort,c); c.gridx = 0; c.gridy = 4; c.gridwidth = 1; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(TNUM,c); c.gridx = 1; c.gridy = 4; c.gridwidth = 3; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(maxThread,c); c.gridx = 0; c.gridy = 5; c.gridwidth = 3; c.fill = GridBagConstraints.VERTICAL; c.anchor = GridBagConstraints.CENTER; mPanel.add(Submit,c); c.gridx = 6; c.gridy = 5; c.gridwidth = 4; c.fill = GridBagConstraints.VERTICAL; c.anchor = GridBagConstraints.CENTER; mPanel.add(Cancel,c); c.gridx = 0; c.gridy = 6; c.gridwidth = 10; c.fill = GridBagConstraints.BOTH; c.anchor = GridBagConstraints.CENTER; mPanel.add(RST,c); //设置文本区域可以换行 Result.setLineWrap(true); //设置文本区域不可编辑 Result.setEditable(false); c.gridx = 0; c.gridy = 7; c.gridwidth = 10; c.gridheight = 4; c.fill = GridBagConstraints.VERTICAL; c.anchor = GridBagConstraints.CENTER; mPanel.add(resultPane,c); Container dPanel = DLGError.getContentPane(); dPanel.setLayout(new FlowLayout(FlowLayout.CENTER)); dPanel.add(DLGINFO); dPanel.add(OK); Submit.addActionListener(new SubmitAction()); Cancel.addActionListener(new CancleAction()); OK.addActionListener(new OKAction()); //实现退出功能 exitItem.addActionListener(new java.awt.event.ActionListener() { public void actionPerformed(java.awt.event.ActionEvent e) { System.exit(0); } }); //实现帮助功能 saveButton.addActionListener(new java.awt.event.ActionListener() { public void actionPerformed(java.awt.event.ActionEvent e) { JFileChooser fc=new JFileChooser(); int returnVal=fc.showSaveDialog(null); //点击“保存” if(returnVal == 0){ File saveFile=fc.getSelectedFile(); try { FileWriter writeOut = new FileWriter(saveFile); writeOut.write(ThreadScan.Result.getText()); writeOut.close(); } catch (IOException ex) { System.out.println("保存失败"); } } //点击“取消” else return; } }); main.setVisible(true); } } /* *实现“取消”功能 *退出程序 */ class CancleAction implements ActionListener{ public void actionPerformed (ActionEvent e){ System.exit(0); } } /* *实现“确定”功能 *完成扫描 */ class SubmitAction implements ActionListener{ public void actionPerformed (ActionEvent a){ int minPort; int maxPort; int maxThread; int ip1 = 0; int ip2 = 0; int ip3 = 0; int ipstart = 0; int ipend = 0; String ipaddress = ""; String hostname = ""; ThreadScan.Result.setText(""); //将"确定"按钮设置成为不可用 if(ThreadScan.Submit.isEnabled()){ ThreadScan.Submit.setEnabled(false); } /* *判断搜索的类型 *按照ip地址扫描：type = 0 *按照主机名称扫描：type = 1 */ if(ThreadScan.radioIp.isSelected()){ TCPThread.type = 0; //判断ip的前3位是否为int型 try{ ip1=Integer.parseInt(ThreadScan.fromip1.getText()); } catch(NumberFormatException e){ ThreadScan.DLGINFO.setText("错误的ip!"); ThreadScan.DLGError.setVisible(true); return; } //判断ip的4~6位是否为int型 try{ ip2=Integer.parseInt(ThreadScan.fromip2.getText()); } catch(NumberFormatException e){ ThreadScan.DLGINFO.setText("错误的ip!"); ThreadScan.DLGError.setVisible(true); return; } //判断ip的7~9位是否为int型 try{ ip3=Integer.parseInt(ThreadScan.fromip3.getText()); } catch(NumberFormatException e){ ThreadScan.DLGINFO.setText("错误的ip!"); ThreadScan.DLGError.setVisible(true); return; } //判断起始ip的最后4位是否为int型 try{ ipstart=Integer.parseInt(ThreadScan.fromip4.getText()); } catch(NumberFormatException e){ ThreadScan.DLGINFO.setText("错误的ip!"); ThreadScan.DLGError.setVisible(true); return; } //判断目标ip的最后4位是否为int型 try{ ipend=Integer.parseInt(ThreadScan.toip.getText()); } catch(NumberFormatException e){ ThreadScan.DLGINFO.setText("错误的目标ip!"); ThreadScan.DLGError.setVisible(true); return; } //判断起始ip是否正确 //判断条件：大于0且小于等于255 if(ip1<0 || ip1>255||ip2<0 || ip2>255||ip3<0 || ip3>255||ipstart<0 || ipstart>255){ ThreadScan.DLGINFO.setText(" ip地址为0-255的整数! "); ThreadScan.DLGError.setVisible(true); return; } else{ TCPThread.ip1 = ip1; TCPThread.ip2 = ip2; TCPThread.ip3 = ip3; TCPThread.ipstart = ipstart; } //判断目标ip是否正确 //判断条件：大于0且小于等于255 if(ipend<0 || ipend>255){ ThreadScan.DLGINFO.setText("目标ip地址为0-255的整数! "); ThreadScan.DLGError.setVisible(true); return; } else{ TCPThread.ipend = ipend; } ipaddress = "" + ip1 + ip2 + ip3 + ipstart; /* *判断ip地址的有效性 */ try{ TCPThread.hostAddress=InetAddress.getByName(ipaddress); } catch(UnknownHostException e){ ThreadScan.DLGINFO.setText(" 错误的IP或地址不可达! "); ThreadScan.DLGError.setVisible(true); return; } } //根据主机名进行端口扫描 if(ThreadScan.radioHost.isSelected()){ TCPThread.type = 1; /* *判断主机名称的有效性 */ try{ TCPThread.hostAddress=InetAddress.getByName(ThreadScan.hostname.getText()); } catch(UnknownHostException e){ ThreadScan.DLGINFO.setText("错误的域名或地址不可达! "); ThreadScan.DLGError.setVisible(true); return; } } /* *判断端口号的有效性 */ try{ minPort=Integer.parseInt(ThreadScan.minPort.getText()); maxPort=Integer.parseInt(ThreadScan.maxPort.getText()); maxThread=Integer.parseInt(ThreadScan.maxThread.getText()); } catch(NumberFormatException e){ ThreadScan.DLGINFO.setText("错误的端口号或线程数!端口号和线程数必须为整数!"); ThreadScan.DLGError.setVisible(true); return; } /* *判断最小端口号的有效范围 *判断条件：大于0且小于65535，最大端口应大于最小端口 */ if(minPort<0 || minPort>65535 || minPort>maxPort){ ThreadScan.DLGINFO.setText("最小端口必须是0-65535并且小于最大端口的整数!"); ThreadScan.DLGError.setVisible(true); return; } else{ TCPThread.MIN_port=minPort; } /* *判断最大端口号的有效范围 *判断条件：大于0且小于65535，最大端口应大于最小端口 */ if(maxPort<0 || maxPort>65535 || maxPort<minPort){ ThreadScan.DLGINFO.setText("最大端口必须是0-65535并且大于最小端口的整数!"); ThreadScan.DLGError.setVisible(true); return; } else{ TCPThread.MAX_port=maxPort; } /* *判断线程数量的有效范围 *判断条件：大于1且小于200 */ if(maxThread<1 || maxThread>200){ ThreadScan.DLGINFO.setText("线程数为1-200的整数! "); ThreadScan.DLGError.setVisible(true); return; } ThreadScan.Result.append("线程数 "+ThreadScan.maxThread.getText()+"\n"); //启动线程 for(int i=0;i<maxThread;i++){ new TCPThread("T" + i,i).start(); } } } /* *实现错误提示框中的“确定”按钮功能 */ class OKAction implements ActionListener{ public void actionPerformed (ActionEvent e){ ThreadScan.DLGError.dispose(); } } 多线程类文件： import .*; import java.io.*; import java.awt.*; import java.awt.event.*; import javax.swing.*; public class TCPThread extends Thread{ public st
