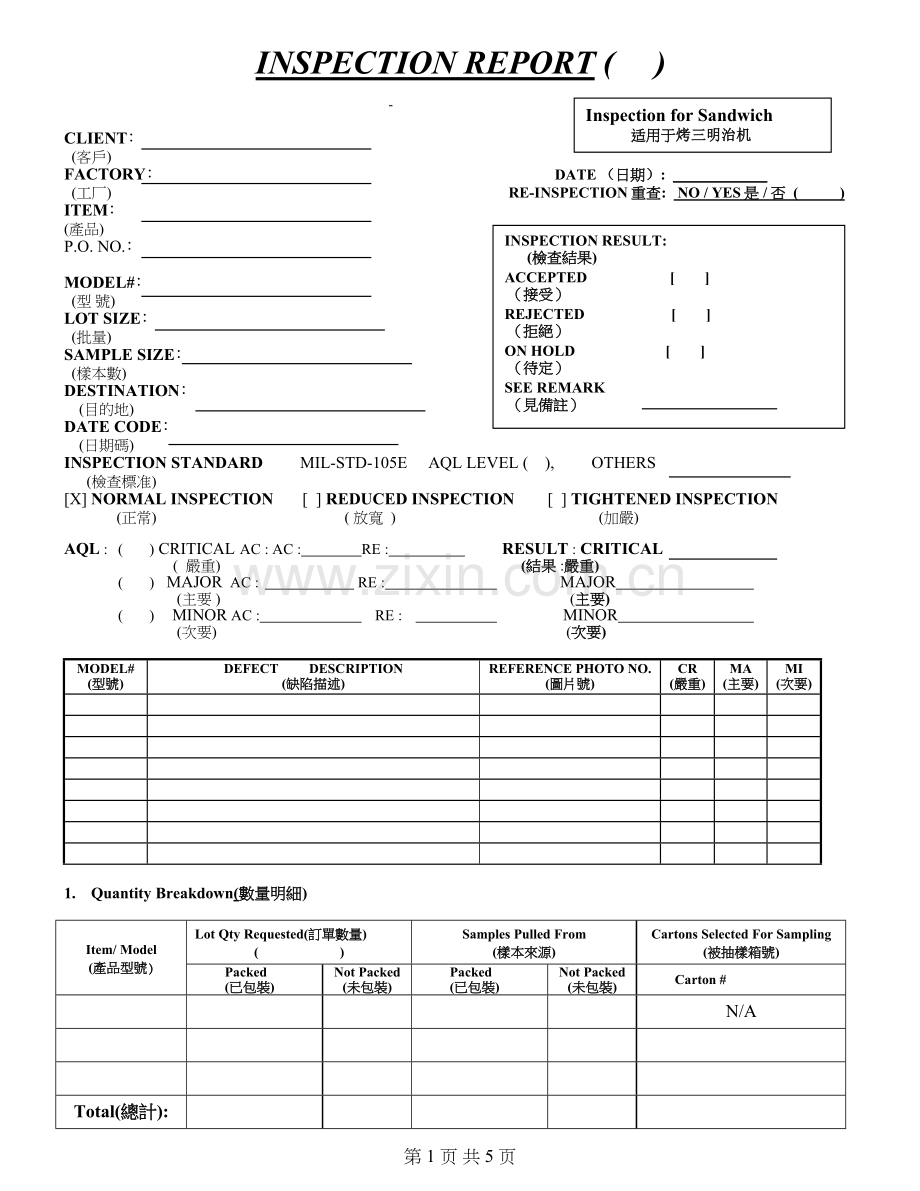

INSPECTION REPORT ( )

Inspection for Sandwich
适用于烤三明治机
-

CLIENT﹕
(客戶)
FACTORY﹕ DATE （日期）:
(工厂) RE-INSPECTION重查: NO / YES是 / 否 ( )
ITEM﹕　　
INSPECTION RESULT:
(檢查結果)
ACCEPTED [ ]
（接受）
REJECTED [ ]
（拒絕）
ON HOLD [ ]
（待定）
SEE REMARK
（見備註）
(產品)
P.O. NO.﹕

MODEL#﹕
(型 號)
LOT SIZE﹕
(批量)
SAMPLE SIZE﹕
(樣本數)
DESTINATION﹕
(目的地)
DATE CODE﹕
(日期碼)
INSPECTION STANDARD MIL-STD-105E AQL LEVEL ( ), OTHERS
(檢查標准)
[X] NORMAL INSPECTION [ ] REDUCED INSPECTION [ ] TIGHTENED INSPECTION
(正常) ( 放寬 ) (加嚴)

AQL : ( ) CRITICAL AC : AC : RE : RESULT : CRITICAL
( 嚴重) (結果 :嚴重)
( ) MAJOR AC : RE : MAJOR
(主要 ) (主要)
( ) MINOR AC : RE : MINOR
(次要) (次要)

MODEL#
(型號)
DEFECT DESCRIPTION
(缺陷描述)
REFERENCE PHOTO NO.
(圖片號)
CR
(嚴重)
MA
(主要)
MI
(次要)

1. Quantity Breakdown(數量明細)

Item/ Model
(產品型號)
Lot Qty Requested(訂單數量)
( )
Samples Pulled From
(樣本來源)
Cartons Selected For Sampling
(被抽樣箱號)
Packed
(已包裝)
Not Packed
(未包裝)
Packed
(已包裝)
Not Packed
(未包裝)
Carton #

N/A

Total(總計):

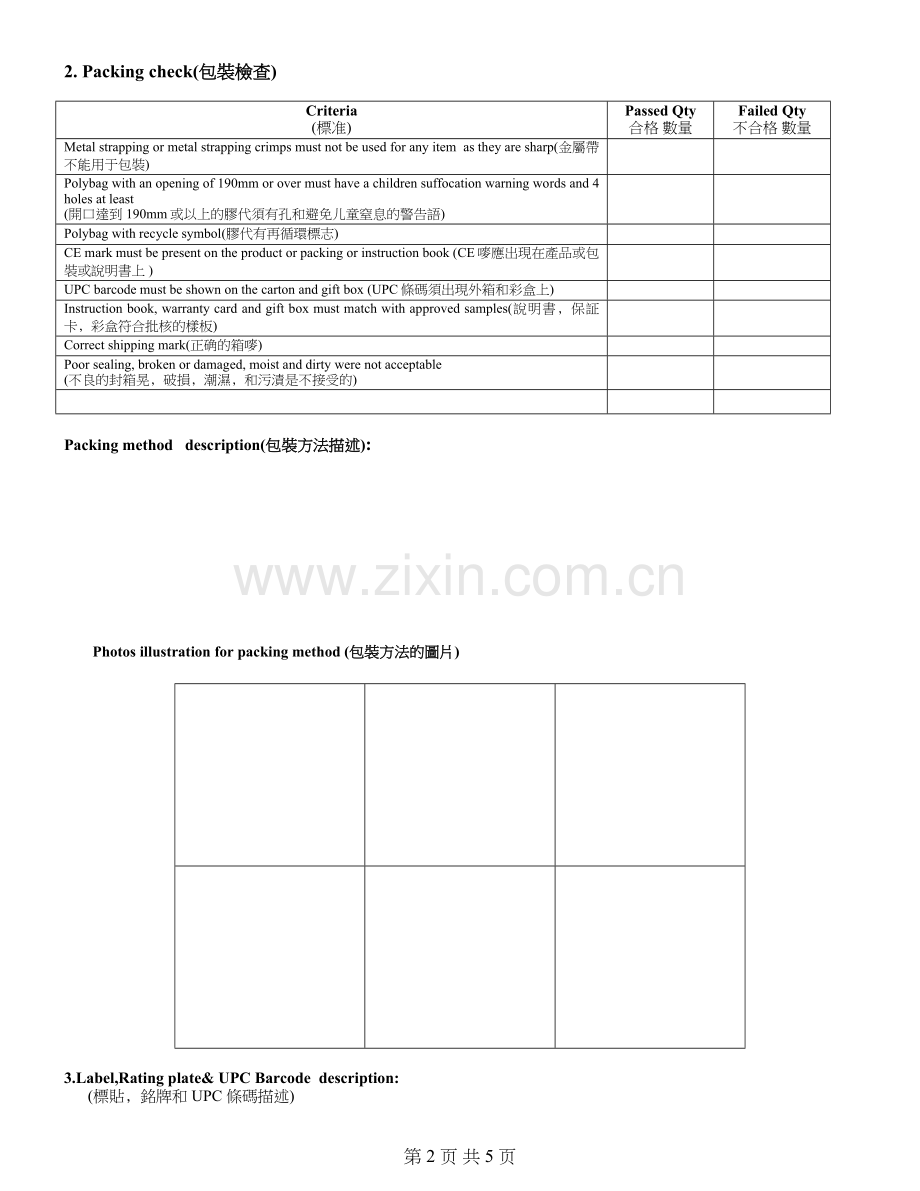

2. Packing check(包裝檢查)

Criteria
(標准)
Passed Qty
合格 數量
Failed Qty
不合格 數量
Metal strapping or metal strapping crimps must not be used for any item as they are sharp(金屬帶不能用于包裝)

Polybag with an opening of 190mm or over must have a children suffocation warning words and 4 holes at least
(開口達到190mm或以上的膠代須有孔和避免儿童窒息的警告語)

Polybag with recycle symbol(膠代有再循環標志)

CE mark must be present on the product or packing or instruction book (CE嘜應出現在產品或包裝或說明書上 )

UPC barcode must be shown on the carton and gift box (UPC條碼須出現外箱和彩盒上)

Instruction book, warranty card and gift box must match with approved samples(說明書﹐保証卡﹐彩盒符合批核的樣板)

Correct shipping mark(正确的箱嘜)

Poor sealing, broken or damaged, moist and dirty were not acceptable
(不良的封箱晃﹐破損﹐潮濕﹐和污漬是不接受的)

Packing method description(包裝方法描述):

Photos illustration for packing method (包裝方法的圖片)

3.Label,Rating plate& UPC Barcode description:
(標貼﹐銘牌和UPC 條碼描述)

Photos illustration for label ,Rating plate &UPC Barcode:
(標貼﹐銘牌 &UPC 條碼照片)

4.SHIPPING MARK(箱嘜):
MASTER CARTON(外箱):
FRONT & BACK(前 & 后) SIDES(兩側)

CARTON NO.: FROM(箱號).: FROM TO PCS PER CARTON

5. Major component check(主要元件檢查)

Item(項目)
Description(描述)
Power cord(電源線)

Plug(插頭_

Thermostat温控器

Heater發熱器

Thermal fuse保险丝

Lead wire引線

6. Testing(測試)

Test item
(測試項目)
Sampling plan
(抽樣)
Criteria(標准)
Passed Qt
合格數量
Failed Qt
失敗數量
Hi-Pot test(高壓測試)
LII
Class I: 1500Vac,1S. Class II: 4250Vac,1S.( cut-off current setting on Hi-pot tester should less than 100mA,initial setting 0.5~5mA was recommended)
(Class I: 1500Vac,1S. 1MA 　Class II: 4250Vac,1S　1MA)

Polarity test(极性檢查)
5PCS
Live wire connect to switch ,thermostat, Thermal fuse,
(火線接到開關﹐溫控器)

Grounding continuity test接地測試
LII
12V, 1.5times of rated current or 25A( whichever is greater),not exceed 0.1Ω（12V, 25A,不大于0.1Ω）

Power input test(功率檢查)
LII
Less than +5% of rated power and more than -10% of rated power(功率值的90% 与105% 之間)

Function test(功能檢查)
LII
Case by case(按說明書)

Strain relief test
(電線拉力測試)
5 PCS
60N, 1Sec. for 25 times, power cord displacement less than 2mm (60N, 1S. 25 次﹐位移小于2mm)

Screw strength torque test(螺絲扭力測試)
5 PCS
Not less than 5kgfcm
不小于 5kgfcm

Stability test
(穩定性測試)
5 PCS
Shall not tip over when tilted to a 10 degree angle in any direction( for electric heat appliance increase to 15°)在 10°斜面不能翻倒﹐電熱類為 15°

Max.temperature test最高溫度測試
5 PCS
Not exceed 280℃（不高于280℃

Overheating protection test過熱保護測試
10 PCS
Shall automatically shut off power within ?? seconds without melting or burning達到設定溫度后應自動關斷功率且無熔化和燃燒

Timer test烤食物測試
5 PCS
Depend on effect看實際效果

Screen printing test(絲印測試)
5 PCS
No peel off using 3M Tape用 3M 貼紙測試無脫落

Coating test
涂层測試
1 PCS
Cut 1.0mm cross hatch on surface, No peel off using 3M Tape(切 1.0mm 方格１００個 ﹐用 3M 貼紙測試無脫落

Endurance test
(耐久性測試)
1 PCS
Operate product in normal condition with max setting for2-3 hours, then hi-pot test and function test shall be conducted, all results shall be acceptable(正常條件下﹐最高擋工作 2-3 小時, 然后高壓測試﹐功能測試應合格)

Carton drop test
(跌箱測試)
1 PC
As ISTA TEST PROCEDURES 2B&2A按照ISTA 2B&2A

Internal construction test(內部檢查)
5 PCS
Adequate clearance and creepage distance, correct components, no foreign object inside, no loose(足夠的電气距离和爬電距离﹐正确的元件﹐無异物和松動)

Plug check (for SA)(插頭檢查 (SA)
5 PCS
correct wiring, no loose strands& wire ,no solders, terminal screws, plug screw and fuse holder were secure (正确排線﹐無散線絲﹐無焊接﹐端子螺絲可靠緊固。)

UPC Barcode scannable test UPC條碼 掃描測試
LII
All UPC barcode in sample are scannable , UPC scanned number match UPC label
(UPC條碼 可掃描﹐且數字与標貼相符)

7.各档位 盘面温度测试（10PCS）

Description: 将档位开关开到相应的档位，然后通电测试每个档位的通电加热时间
样本数
1
2
3
4
5
6
7
8
9
10
温度

8. Remarks(備注):
(1) )Client provided bill of material available for inspection reference( Yes / No )
客戶的BOM 可用在驗貨時參考（　是　/　否　）
(2)Defect photos(缺陷照片)

INSPECTORS: FTY REPRESENTATIVES:
(檢查員) (工厂負責人)
