华为ma5680tOLT开局配置.doc

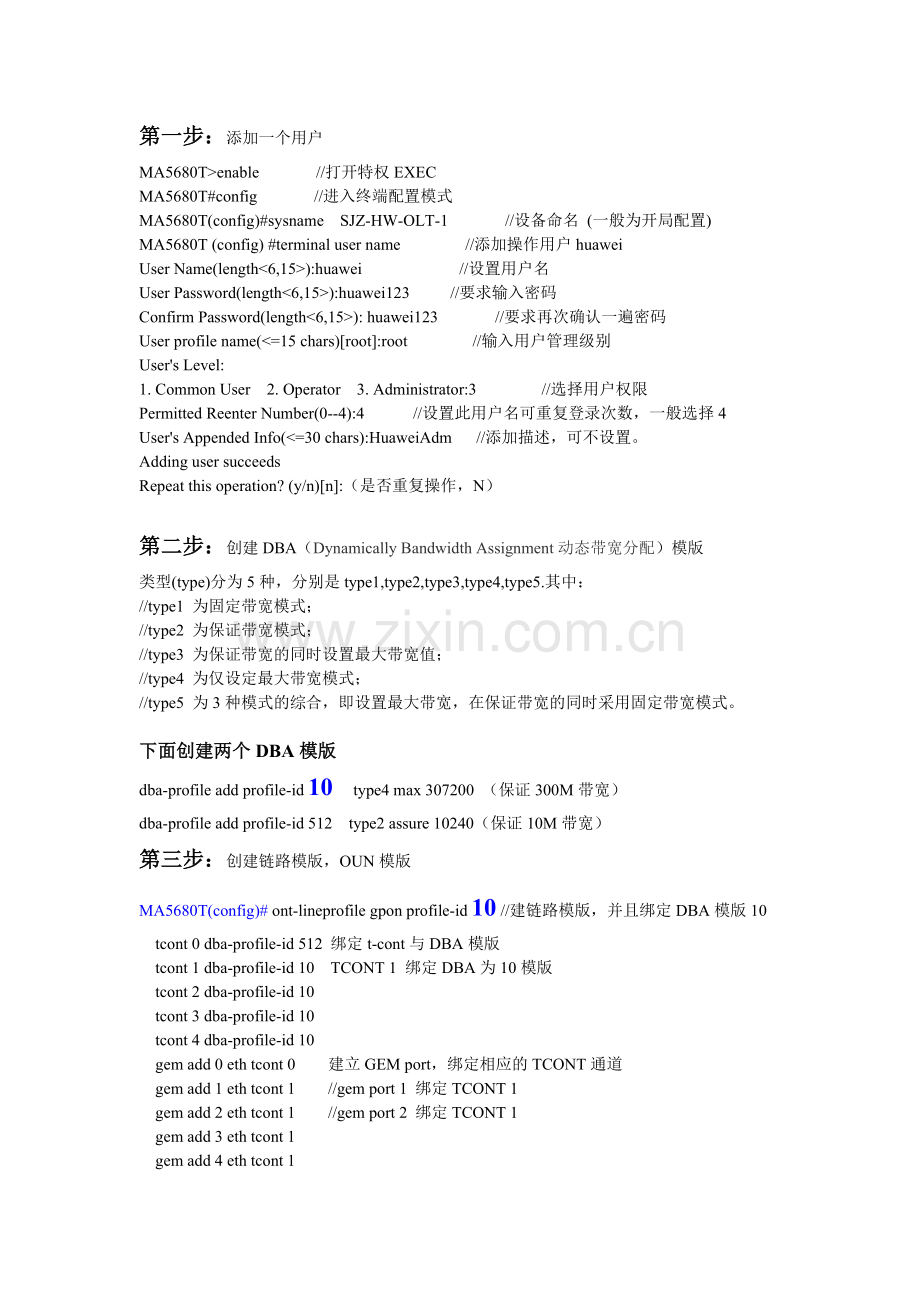

第一步：添加一个用户
MA5680T>enable //打开特权EXEC
MA5680T#config //进入终端配置模式
MA5680T(config)#sysname SJZ-HW-OLT-1 //设备命名 (一般为开局配置)
MA5680T (config) #terminal user name //添加操作用户huawei
User Name(length<6,15>):huawei //设置用户名
User Password(length<6,15>):huawei123 //要求输入密码
Confirm Password(length<6,15>): huawei123 //要求再次确认一遍密码
User profile name(<=15 chars)[root]:root //输入用户管理级别
User's Level:
1. Common User 2. Operator 3. Administrator:3 //选择用户权限
Permitted Reenter Number(0--4):4 //设置此用户名可重复登录次数，一般选择4
User's Appended Info(<=30 chars):HuaweiAdm //添加描述，可不设置。
Adding user succeeds
Repeat this operation? (y/n)[n]:（是否重复操作，N）

第二步：创建DBA（Dynamically Bandwidth Assignment动态带宽分配）模版
类型(type)分为5种，分别是type1,type2,type3,type4,type5.其中：
//type1 为固定带宽模式；
//type2 为保证带宽模式；
//type3 为保证带宽的同时设置最大带宽值；
//type4 为仅设定最大带宽模式；
//type5 为3种模式的综合，即设置最大带宽，在保证带宽的同时采用固定带宽模式。

下面创建两个DBA模版
dba-profile add profile-id 10 type4 max 307200 （保证300M带宽）
dba-profile add profile-id 512 type2 assure 10240（保证10M带宽）
第三步：创建链路模版，OUN模版
MA5680T(config)# ont-lineprofile gpon profile-id 10 //建链路模版，并且绑定DBA模版10
tcont 0 dba-profile-id 512 绑定t-cont与DBA模版
tcont 1 dba-profile-id 10 TCONT 1 绑定DBA为10模版
tcont 2 dba-profile-id 10
tcont 3 dba-profile-id 10
tcont 4 dba-profile-id 10
gem add 0 eth tcont 0 建立GEM port，绑定相应的TCONT通道
gem add 1 eth tcont 1 //gem port 1 绑定TCONT 1
gem add 2 eth tcont 1 //gem port 2 绑定TCONT 1
gem add 3 eth tcont 1
gem add 4 eth tcont 1
gem mapping 0 0 vlan 888 建立GEM Port端口映射，这里使用索引号与vlan映射。
gem mapping 1 0 vlan 101 //gemport 1 的第0个索引号与vlan101映射
gem mapping 2 0 vlan 102 // gemport 2 的第0个索引号与vlan102映射
gem mapping 3 0 vlan 103
gem mapping 4 0 vlan 104
commit （提交，保存）

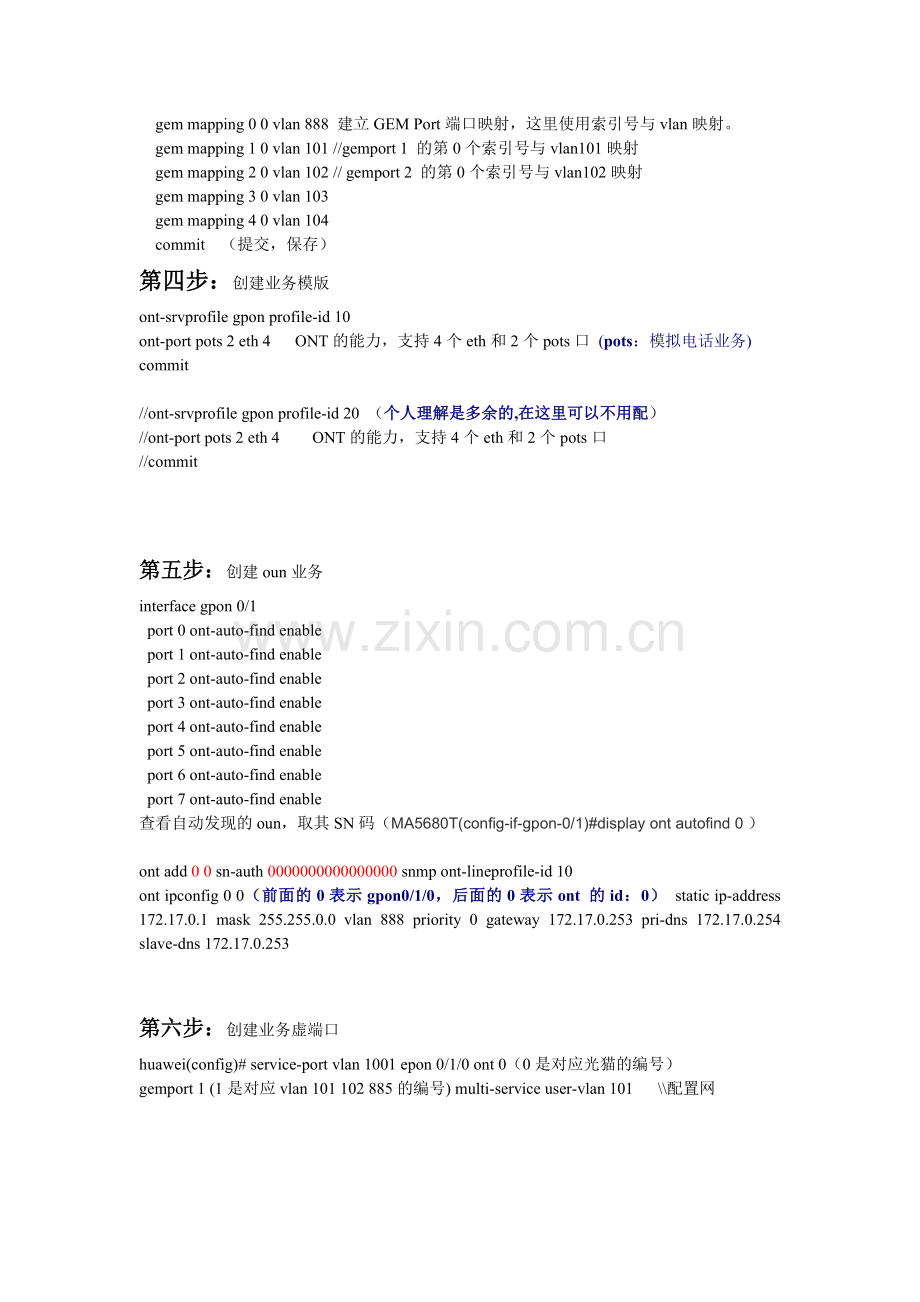

第四步：创建业务模版
ont-srvprofile gpon profile-id 10
ont-port pots 2 eth 4 ONT的能力，支持4个eth和2个pots口 (pots：模拟电话业务)
commit

//ont-srvprofile gpon profile-id 20 （个人理解是多余的,在这里可以不用配）
//ont-port pots 2 eth 4 ONT的能力，支持4个eth和2个pots口
//commit

第五步：创建oun业务
interface gpon 0/1
port 0 ont-auto-find enable
port 1 ont-auto-find enable
port 2 ont-auto-find enable
port 3 ont-auto-find enable
port 4 ont-auto-find enable
port 5 ont-auto-find enable
port 6 ont-auto-find enable
port 7 ont-auto-find enable
查看自动发现的oun，取其SN码（MA5680T(config-if-gpon-0/1)#display ont autofind 0 ）

ont add 0 0 sn-auth 0000000000000000 snmp ont-lineprofile-id 10
ont ipconfig 0 0（前面的0表示gpon0/1/0，后面的0表示ont 的id：0） static ip-address 172.17.0.1 mask 255.255.0.0 vlan 888 priority 0 gateway 172.17.0.253 pri-dns 172.17.0.254 slave-dns 172.17.0.253

第六步：创建业务虚端口
huawei(config)# service-port vlan 1001 epon 0/1/0 ont 0（0是对应光猫的编号）
gemport 1 (1是对应vlan 101 102 885的编号) multi-service user-vlan 101 \\配置网

service-port 0 vlan 888 gpon 0/1/0 ont 8 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 1 vlan 1001 gpon 0/1/0 ont 8 gemport 1 multi-service user-vlan 101
tag-transform translate-and-add inner-vlan 101 inner-priority 0
service-port 2 vlan 888 gpon 0/1/0 ont 0 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 3 vlan 888 gpon 0/1/0 ont 1 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 4 vlan 888 gpon 0/1/0 ont 2 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 5 vlan 888 gpon 0/1/0 ont 3 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 6 vlan 888 gpon 0/1/0 ont 4 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 7 vlan 888 gpon 0/1/0 ont 5 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 8 vlan 888 gpon 0/1/0 ont 6 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 9 vlan 888 gpon 0/1/0 ont 7 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 10 vlan 888 gpon 0/1/1 ont 0 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 11 vlan 888 gpon 0/1/1 ont 1 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 12 vlan 888 gpon 0/1/1 ont 2 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 13 vlan 888 gpon 0/1/1 ont 3 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 14 vlan 888 gpon 0/1/1 ont 4 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 15 vlan 888 gpon 0/1/1 ont 5 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 16 vlan 888 gpon 0/1/1 ont 6 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 17 vlan 888 gpon 0/1/1 ont 7 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 18 vlan 1001 gpon 0/1/0 ont 1 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 102 inner-priority 0
service-port 19 vlan 1001 gpon 0/1/0 ont 2 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 103 inner-priority 0
service-port 20 vlan 1001 gpon 0/1/0 ont 3 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 104 inner-priority 0
service-port 21 vlan 1001 gpon 0/1/0 ont 4 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 105 inner-priority 0
service-port 22 vlan 1001 gpon 0/1/0 ont 5 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 106 inner-priority 0
service-port 23 vlan 1001 gpon 0/1/0 ont 6 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 107 inner-priority 0
service-port 24 vlan 1001 gpon 0/1/0 ont 7 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 108 inner-priority 0
service-port 25 vlan 1001 gpon 0/1/1 ont 0 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 109 inner-priority 0
service-port 26 vlan 1001 gpon 0/1/1 ont 1 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 110 inner-priority 0
service-port 27 vlan 1001 gpon 0/1/1 ont 2 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 111 inner-priority 0
service-port 28 vlan 1001 gpon 0/1/1 ont 3 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 112 inner-priority 0
service-port 29 vlan 1001 gpon 0/1/1 ont 4 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 113 inner-priority 0
service-port 30 vlan 1001 gpon 0/1/1 ont 5 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 114 inner-priority 0
service-port 31 vlan 1001 gpon 0/1/1 ont 6 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 115 inner-priority 0
service-port 32 vlan 1001 gpon 0/1/1 ont 7 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 116 inner-priority 0
service-port 33 vlan 888 gpon 0/1/1 ont 8 gemport 0 multi-service user-vlan 888
tag-transform translate
service-port 34 vlan 1001 gpon 0/1/1 ont 8 gemport 1 multi-service user-vlan
101 tag-transform translate-and-add inner-vlan 117 inner-priority 0
service-port 35 vlan 1015 gpon 0/1/0 ont 0 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 36 vlan 1015 gpon 0/1/0 ont 1 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 37 vlan 1015 gpon 0/1/0 ont 2 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 38 vlan 1015 gpon 0/1/0 ont 3 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 39 vlan 1015 gpon 0/1/0 ont 4 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 40 vlan 1015 gpon 0/1/0 ont 5 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 41 vlan 1015 gpon 0/1/0 ont 6 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 42 vlan 1015 gpon 0/1/0 ont 7 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 43 vlan 1015 gpon 0/1/0 ont 8 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 44 vlan 1015 gpon 0/1/1 ont 0 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 45 vlan 1015 gpon 0/1/1 ont 1 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 46 vlan 1015 gpon 0/1/1 ont 2 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 47 vlan 1015 gpon 0/1/1 ont 3 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 48 vlan 1015 gpon 0/1/1 ont 4 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 49 vlan 1015 gpon 0/1/1 ont 5 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 50 vlan 1015 gpon 0/1/1 ont 6 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 51 vlan 1015 gpon 0/1/1 ont 7 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 52 vlan 1015 gpon 0/1/1 ont 8 gemport 3 multi-service user-vlan
103 tag-transform translate
service-port 53 vlan 805 gpon 0/1/0 ont 0 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 54 vlan 806 gpon 0/1/0 ont 1 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 55 vlan 807 gpon 0/1/0 ont 2 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 56 vlan 808 gpon 0/1/0 ont 3 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 57 vlan 809 gpon 0/1/0 ont 4 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 58 vlan 810 gpon 0/1/0 ont 5 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 59 vlan 811 gpon 0/1/0 ont 6 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 60 vlan 812 gpon 0/1/0 ont 7 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 61 vlan 813 gpon 0/1/0 ont 8 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 62 vlan 814 gpon 0/1/1 ont 0 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 63 vlan 815 gpon 0/1/1 ont 1 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 64 vlan 816 gpon 0/1/1 ont 2 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 65 vlan 817 gpon 0/1/1 ont 3 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 66 vlan 818 gpon 0/1/1 ont 4 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 67 vlan 819 gpon 0/1/1 ont 5 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 68 vlan 820 gpon 0/1/1 ont 6 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 69 vlan 805 gpon 0/1/1 ont 7 gemport 2 multi-service user-vlan 102
tag-transform translate
service-port 70 vlan 806 gpon 0/1/1 ont 8 gemport 2 multi-service user-vlan 102
tag-transform translate

管vlan 100业务虚通道， ontid为0
