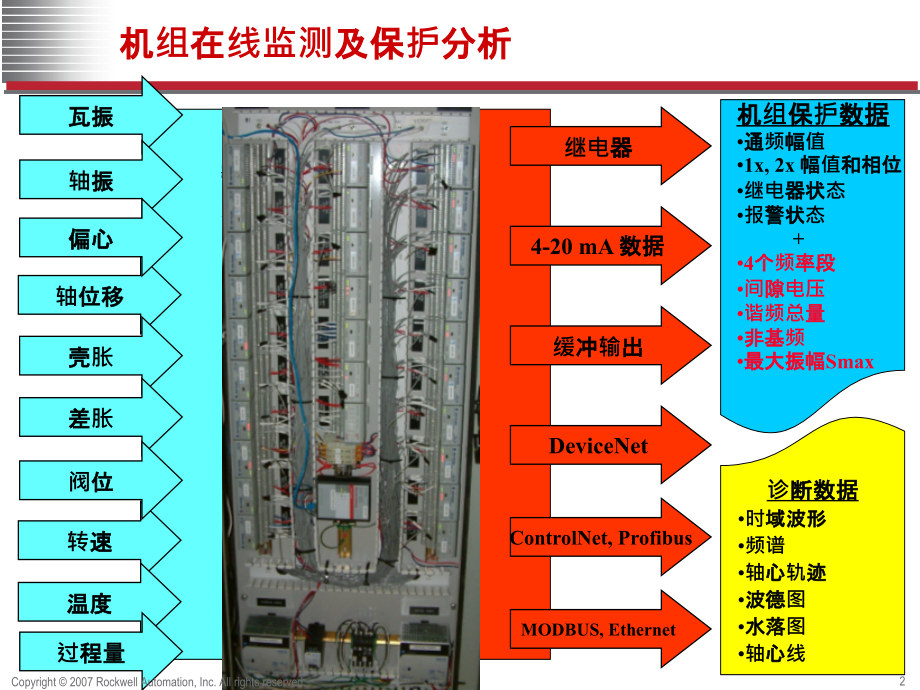

,Click to add text,Second level,Third level,Fourth level,Fifth level,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,*,Click to edit Master title,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,Click to add text,Second level,Third level,Fourth level,Fifth level,Click to edit Master title,罗克韦尔自动化状态监测系统,机组保护数据,通频幅值,1x,2x,幅值和相位,继电器状态,报警状态,+,4,个频率段,间隙电压,谐频总量,非基频,最大振幅,Smax,诊断数据,时域波形,频谱,轴心轨迹,波德图,水落图,轴心线,数据,输出,数据,输入,4-20 mA,数据,继电器,DeviceNet,缓冲输出,ControlNet,Profibus,MODBUS,Ethernet,机组在线监测及保护分析,瓦振,轴振,轴位移,转速,温度,过程量,壳胀,差胀,阀位,偏心,2,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,机组在线监测及保护分析置于集成架构之中,XM-120,XM-320,XM-120,XM-361,Complex Data,Condition Monitoring System,Maintenance Management System,Intelligent Advisor Generates Work Orders,XM Polled and COS Data,OPC Server(e.g.,RSLinx),OPC to Other Systems,3,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,Measurements,Radial,Shaft,Absolute,Thrust/,Eccentricity,Speed/Temperature Vibration,Relative,Shaft,Expansion/,Overspeed,Position,Monitors,XM-120 XM-120E,XM-121 XM-121A XM-220,XM-320,XM-361 XM-362,HMI,Versa View,PanelView Strip Chart LED Indicator RSVIEW,Reliability,Emonitor,RSMACC EOL,ROL,Services,Design Installation/Configuration,Startup&,Drawings&Project Management Testing,Acceptance Commissioning Documentation,Control,PLC/DCS,OPC Gateway,Relay Logic,4-20 mA I/O,DeviceNet Interface,(XM-440),机组在线监测及保护系统组成,4,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,测点位置及传感器选择,轴承,轴承座,轴承,轴承座,2100,系列电涡流传感器,9000,系列加速度传感器,5,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,2100,系列传感器,6,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,2100,系列传感器,7,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,反装探头,探头部分电缆总长,05,：0.5,m,10,：,1.0m,EK-2110-30-05-1-,8mm,反装探头,M10 x1,探头长度,30mm,无螺纹长度,5mm,8,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,正装探头,-00-1-,探头部分电缆总长,10,：,1.0m,1,：,1.0m(,当探头长度,120mm),探头,长度可选择：,30,50,70,90,120,150mm,0,7,：,8mm,正装,探头,，,M10 x1,08,：,8mm,正,装探头,，铠装，,M10 x1,EK-21,-,8mm,探头,M10 x1,无螺纹长度,0mm,电缆,1m,9,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,探头选型,EK-21,-,-,-,-,0,7,：,8mm,正装,探头,，,M10 x1,08,：,8mm,正,装探头,，铠装，,M10 x1,0,9,：,8mm反装探头,，,3/8-24,1,0,：,8mm反装探头,，,M10 x1,13,：,11,mm,正装,探头,，,M1,4,x1,.,5,14,：,11,mm,正,装探头,，铠装，,M1,4,x1,.,5,19,：,18,mm,正,装探头,，铠装，,M,2,0,x1,.5,26,：,25.4,mm,正,装探头,，铠装，,M,3,0,x1,.5,51,：,50,mm,正,装探头,，铠装，,M,2,4,x1,.5,X：,8mm,正装,探头,长度可选择：,30,50,70,90,120,150,3,0,：,8mm反装探头,头部长度,30mm,40,：,11,mm,正装,探头,头部长度,40mm,50,：,18,mm,、,25.4,mm,和,50,mm,正,装探头,长度为,50mm,00,：正装探头无螺纹部分长度为0,mm,05,：反装探头无螺纹部分长度为,5mm,1,：带接头为标准型,05,：反装探头部分电缆总长0.5,m,10,：探头部分电缆总长,1.0m,1,：当探头长度为,120mm,或,150mm,，,探头部分电缆总长,1.0m,10,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,延长电缆,11,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,延长电缆选型,EK-217,-,-,0：,8mm探头,1,：,11,mm探头,2,：,18,mm探头,3,：,25.4,mm探头,4,：,50,mm探头,0：非铠装,1：铠装,40,：延长电缆长度为,4.0,m,45,：延长电缆长度为,4.5,m,（,仅用于,8mm,反装,探头,）,80,：延长电缆长度为,8.0,m,85,：延长,电缆长度为,8.5,m,（仅用于,8mm,反装,探头,）,12,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,前置器,13,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,前置器选型,EK-21,-,-,0,8,：,8mm探头,11,：,11,mm探头,18,：,18,mm探头,25,：,25.4,mm探头,50,：,50,mm探头,5,：,5m,系统,9,：,9m,系统,001,：,4140,材料,14,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,反装探头安装支架选型,EK-29,-,-,0：,M20,1,：,3/4“NPT,0：3/4”,NPT,1,：,M20,2,：,1/2“NPT,0：标准(如图),1：细型,被测轴至机壳外面距离：,30,70,80,90,95,110,120,130,140,150,160,180,190,200,210,220,230,240,260,270,280,290,300,310,320,330,600,700mm，,最小5,mm,000,：外接法兰长度,单位,mm,，不需外接法兰,安装螺纹,组件类型,套管螺纹,15,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,前置器箱选型,EK-4702,7,：四位前置器箱，,NEMA4,6,：二位前置器箱，,NEMA4,8,：六位前置器箱，,NEMA4,16,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,前置器箱：,2,位,17,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,前置器箱：,4,位,18,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,前置器箱：,6,位,19,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,前置器箱：,9,位,20,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,安全栅选型,EK-47228,安全栅，,MTL7096(-),，用于电涡流传感器,EK-39974,安全栅，,MTL728(+),，用于加速度传感器,MTL 728(+)Safety Barrier for 2-pin Constant Current Style Accelerometers;Busbar Mounting(1 per Accelerometer),MTL 7096(-)Safety Barrier for 2100 Probe System,Din Rail Mounting(1 per Driver),21,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,9200VO,速度输出传感器,22,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,9200VO,速度输出传感器选型,EK-43809I,EK-46801I,9200VO,速度输出传感器，,100mv/g,32,英尺长电缆（约,9.76m,），带防水电缆接头,23,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,9000,系列加速度传感器系统,产品类型,频率响应范围,共振频率,+/-10%,+/-3dB,9200,通用型,0.9-8000Hz,0.4-10000Hz,28kHz,9200L,低频型,0.36-4000Hz,0.2-6000Hz,16kHz,9200VO,速度输出型,2-2500Hz,1.5-6000Hz,10kHz,9000A,通用型,1.7-5000Hz,0.8-10000Hz,20kHz,9500LF,低频型,0.3-4000Hz,0.2-6000Hz,12kHz,9700A,高频型,3.4-18000Hz,1.6-30000Hz,85kHz,9000A,9500LF,9700A,9200,24,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,温度范围,:,常温,121,o,C 9000A,9200,高温,163,o,C 9100T,9200T,超高温,260,o,C9150HT,9150HTA,转速,(,频率,):,低速,20 RPM9100L,9200L,中速,600,000 RPM9000B,9100,高速,1,800,000 RPM9700A,9700B,4-20mA,振动幅值输出,:,速度,:9842V,9842V/2,9842V2,加速度,:9842A,振动和温度双输出,:,9100AT,9200AT,安全要求,(FM,CSA,和,EX):,9100CSA,9200FM,9100EX,三轴向振动测量,:,9900A,9900B,速度输出,:,9100VO,9200VO,9000,系列加速度传感器选型,25,9842,传感器，,4-20mA,输出,单通道,24VAC,供电,测量速度或加速度,4-20mA,输出,与现有,DCS,、,PLC,、报警和,SCADA,系统相兼容,26,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM,模块系列,XM-,1,：振动测量,2,：转速测量,3,：位置测量,4,：继电器,5,：网关,7,：两通道振动测量框架式仪表,2,：两通道,4,：四通道,6,：六通道,0,：标准,0E,：偏心,1,：低频,1A,：绝对振动,2,：,gSE,3,：燃气轮机,27,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM,模块选型,1440-,-,VST02,：,XM-120,标准振动测量模块,VLF02,：,XM-121,低频振动测量模块,VSE02,：,XM-122 gSE,振动测量模块,VAD02,：,XM-123,燃气轮机测量模块,SPD02,：,XM-220,转速测量模块,TPS02,：,XM-320,位置测量模块,TPR06,：,XM-360,过程量测量模块,TUN06,：,XM-361,温度测量模块,TTC06,：,XM-362,温度测量模块,RMA00,：,XM-440,主继电器模块,REX00,：,XM-441,扩展继电器模块,REX03,：,XM-442,继电器模块,VDRS06,：,XM-160,通频振动测量模块,VDRS06,：,XM-161,通频振动测量模块,VDRP06,：,XM-162,通频振动测量模块,01RA,：,XM-120,标准振动测量模块,XM-121,低频振动测量模块,XM-122 gSE,振动测量模块,XM-123,燃气轮机测量模块,01RB,：,XM-220,转速测量模块,XM-320,位置测量模块,00RE,：,XM-360,过程量测量模块,XM-361,温度测量模块,XM-362,温度测量模块,04RC,：,XM-440,标准振动测量模块,04RD,：,XM-441,标准振动测量模块,04RG,：,XM-442,标准振动测量模块,00RH,：,XM-160,通频振动测量模块,XM-162,标准振动测量模块,06RH,：,XM-161,通频振动测量模块,28,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,底座选型,1440-TB-,A,：,A,型底座,XM-120,标准振动测量模块,XM-121,低频振动测量模块,XM-122 gSE,振动测量模块,XM-123,燃气轮机测量模块,B,：,B,型底座,XM-220,转速测量模块,XM-320,位置测量模块,E,：,E,型底座,XM-360,过程量测量模块,XM-361,温度测量模块,XM-362,温度测量模块,C,：,C,型底座,XM-440,标准振动测量模块,D,：,D,型底座,XM-441,标准振动测量模块,G,：,G,型底座,XM-442,标准振动测量模块,H,：,H,型底座,XM-160,通频振动测量模块,XM-162,标准振动测量模块,XM-161,通频振动测量模块,29,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM,模块：网关,1440-,GWEN2DN,：,XM-500,以太网关模块,30,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM,模块：组态电缆,1440-,SCDB9FXM2,：,XM,串口电缆,31,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM,模块：两通道振动测量框架式仪表,1440-,-,PK02,：,XM-720,标准振动测量模块,05M0,：,XM-720,标准振动测量系统,（,XM-120),05M1,：,XM-720,低频振动测量系统,（,XM-121),05M2,：,XM-720,gSE,振动测量系统,（,XM-122),32,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM-720-,双通道监测系统,双通道,基于,DeviceNet,220VAC,供电,5,个干结点继电器,4-20mA,及缓冲输出,RS,-,232,串口组态,可读取频谱及时域波形进行分析诊断,可与电涡流传感器或加速度传感器配套（另外配置）,33,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,Key XM Modules,XM-120 Dynamic Measurement Module,双通道振动监测模块,XM-361 Universal Temperature Module,六通道温度监测模块,XM-320 Position Module,双通道轴位移监测模块,XM-440 Master Relay Module,主机电器模块（四路）,34,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,单路继电器,双路,4-20mA,输出,转速输入,双通道输入,(,动态信号,),缓冲输出,DeviceNet,通讯,Redundant Power Input,串口通讯接口,XM-120,振动监测模块,I/O,35,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,确定电源容量,36,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,电源供电,37,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,接地,38,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM-120,接线表：轴振,+,键相,Channel X-2100,0,OUT,16,COM,5,-24V DC,37,GROUND,21,与,5,短接,Channel Y-2100,1,OUT,17,COM,22,-24V DC,38,GROUND,21,与,22,短接,Channel Tacho-2100,4,OUT,20,COM,21,-24V DC,31,GROUND,4-20mA,输出,11,4-20mA 1(+),12,4-20mA 1(-),29,4-20mA 2(+),30,4-20mA 2(-),Channel Tacho Output,19,TACH Buffer,20,Tachometer(-),继电器输出,46,Relay N.C.1,47,Relay Common 1,48,Relay N.O.1,49,Relay N.O.2,50,Relay Common 2,51,Relay N.C.2,供电电源,44,24V DC(+),45,24V DC(-),DevicNet,输出,23,CAN_High(white wire),24,CAN_Low(blue wire),10,CAN Shield(bare wire),26,DNet V(+)(red wire),27,DNet V(-)(black wire),39,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM-120,接线：轴振,1,40,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM-120,接线：轴振,2,41,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM-120,接线：轴振,+,壳振,42,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM-120,接线：壳振,+,键相,43,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM-120,接线表：壳振,+,键相,4-20mA,输出,11,4-20mA 1(+),12,4-20mA 1(-),29,4-20mA 2(+),30,4-20mA 2(-),Channel Tacho Output,19,TACH Buffer,20,Tachometer(-),继电器输出,46,Relay N.C.1,47,Relay Common 1,48,Relay N.O.1,49,Relay N.O.2,50,Relay Common 2,51,Relay N.C.2,Channel H-9000,0,OUT,16,COM,37,GROUND,5,与,6,短接,Channel Y-9000,1,OUT,17,COM,38,GROUND,22,与,6,短接,Channel Tacho-2100,4,OUT,20,COM,21,-24V DC,31,GROUND,供电电源,44,24V DC(+),45,24V DC(-),DevicNet,输出,23,CAN_High(white wire),24,CAN_Low(blue wire),10,CAN Shield(bare wire),26,DNet V(+)(red wire),27,DNet V(-)(black wire),44,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,继电器,45,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,继电器,46,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,继电器,47,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,模块组态,Channel Transducer Parameters,Channel Signal Processing Parameters,Measurement Parameters,Tachometer Parameters,Alarm Parameters,Relay Parameters,4-20mA Output Parameters,Triggered Trend Parameters,SU/CD Trend Parameters,I/O Data Parameters,Data Parameters,Device Mode Parameters,48,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,通道参数,1.,测点名称定义,2.,是,/,否给,IEPE,传感器供电,3.,传感器灵敏度定义,4.,传感器灵敏度单位选择,5.,传感器正常工作电压下限值,6.,传感器正常工作电压上限值,7.,直流偏置时间常数？,8.,满量程电压值,9.,输出数据单位定义,10.,高通滤波器设定,11.,数据采样方式,12.,内部齿轮齿数定义？,13.,外部齿轮齿数定义？,14.,信号检测方式选择,15.,通频时间常数,16.,通频阻尼因子？,17.,通频滤波器选择,XM-12X,动态测量模块参数组态,7,4,6,3,5,2,13,12,1,8,17,9,20,16,15,14,11,10,19,18,21,18.,低通滤波器设定,19.,倍频数定义？,49,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,20.,频谱,/,波形参数？,A.,最大分析频率,B.,谱线数,C.,波形测试周期,D.,采样点数,E.,窗函数,F.,平均数设定,XM-12X,动态测量模块参数组态,A,B,C,E,F,D,A,B,C,21.,频段参数？,A.,频段测量方式,B.,最小频段频率,C.,最大频段频率,50,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,转速测量参数,XM-12X,动态测量模块参数组态,7,4,6,3,5,2,10,1,8,9,1.,测点名称定义,2.,传感器正常工作电压下限值,3.,传感器正常工作电压上限值,4.,直流偏置时间常数？,5.,每转脉冲数,6.,是,/,否自动触发,7.,触发滞后设定,?,8.,触发门限,9.,触发斜率,?,10.,指数平均时间常数,?,51,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,报警,/,继电器,/4-20mA,输出,XM-12X,动态测量模块参数组态,7,4,6,3,5,2,13,12,1,8,17,9,16,15,14,11,10,19,18,1.,报警种类选择,2.,报警名称定义,3.,报警使能,4.,报警参数选择,5.,报警类型选择,6.,报警值设定,7.,危险值设定,8.,报警,/,危险滞回值设定,9.,继电器选择,10.,继电器名称定义,11.,继电器使能,/,闭锁设定,12.,报警延时设定,13.,报警逻辑选择,14.,报警通道选择,15.,使继电器动作的类型选择,16.4-20mA,输出有效使能,17.4-20mA,输出对应测量参数选择,18.,量程下限设定,19.,量程上限设定,52,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,趋势触发,输出是否生效,XM-12X,动态测量模块参数组态,7,4,6,3,5,2,12,1,8,9,11,10,1.,使能趋势触发功能,2.,选择测量参数,3.,闭锁使能,4.,继电器数选择,5.,记录时间间隔设定？,6.,趋势记录时长？,7.,趋势触发方式？,8.,记录数据类型,9.,察看趋势数据,10.,复位触发,11.,手动触发,12.,察看整理数据,53,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,启,/,停趋势,XM-12X,动态测量模块参数组态,7,4,6,3,5,2,1,8,9,1.,使能启,/,停趋势功能,2.,选择测量参数,3.,闭锁使能,4.,记录间隔设定,5.,趋势记录总量？,6.,转速下限设定,7.,转速上限设定,8.,察看趋势数据,9.,复位触发,54,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,I/O,数据？,XM-12X,动态测量模块参数组态,55,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,模块信息,XM-12X,动态测量模块参数组态,1.,模块信息,2.,模块地址设定,3.,通讯速率设定,4.,模块固件更新,4,3,2,1,56,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,察看数据,XM-12X,动态测量模块参数组态,1.Ch1,实时状态,/,数据,2.Ch2,实时状态,/,数据,3.,是,/,否只测波形数据,4.,察看频谱,/,波形图,5.,察看趋势图,6.,察看其它数据,7.,察看报警,/,继电器状态,8.4-20mA,实时数据,8.,转速状态,/,历史数据,9.,转速最大值历史数据,7,4,6,3,5,2,1,8,10,9,57,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,两路,4-20mA,输出,两通道输入,(,动态信号,),两通道缓冲输出,DeviceNet,通讯,Redundant Power Input,串口通讯接口,XM-320,位移监测模块,I/O,58,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM-320,接线表：,轴位移,Channel 1-2100,0,OUT,16,COM,22,-24V DC,37,GROUND,16,与,43,6,16,短接,Channel 2-2100,1,OUT,17,COM,22,-24V DC,38,GROUND,16,与,43,6,17,短接,供电电源,44,24V DC(+),45,24V DC(-),DevicNet,输出,23,CAN_High(white wire),24,CAN_Low(blue wire),10,CAN Shield(bare wire),26,DNet V(+)(red wire),27,DNet V(-)(black wire),4-20mA,输出,11,4-20mA 1(+),12,4-20mA 1(-),29,4-20mA 2(+),30,4-20mA 2(-),继电器输出,46,Relay N.C.1,47,Relay Common 1,48,Relay N.O.1,49,Relay N.O.2,50,Relay Common 2,51,Relay N.C.2,59,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM-320,：轴位移,1,60,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM-320,：轴位移,2,61,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,配置参数（,1,）,传感器灵敏度,传感器原始单位,传感器故障最小和最大直流电压,传感器偏置电压指数平均常数,测量平面角度,传感器输出单位,标定偏移,标定偏置电压,测量模式,方向设定,配置参数,62,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,测量模式,1,标准模式,在标准模式中，模块可以视为一个双通道差分单元，安装在机壳上的探头测量相对于机壳的轴位置。探头的位置对于确保有效的轴运动在任何情况下都不破坏探头来说是非常关键的。探头类型和范围的选择也是很重要的。探头的静态间隙自动从测量值中减去，以使系统能够测量相对总间隙的微小运动。,应用这种模式时，模块用于平直目标、倾斜目标和混合目标，如图所示。,正常模式,平直目标,倾斜目标,混合目标,在标准模式下，,XM-320,提供以下机器监测功能。,轴向（推力）位置,差胀,机壳膨胀,阀位置,重要：,对于阀位置测量，灵敏度必须设置为“度”,63,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,测量模式,2,端对端模式,端对端测量模式可以扩展为“尾对尾”方式布置两个探头，如下图所示。这种模式应用在机器不能为大直径探头提供足够空间的情况下。在该模式中，刻度不必均匀对称，不同电压灵敏度的探头也可以用在一个模块中。注意，在端对端模式中，所有位置测量结果保存在通道,1,中。,端对端模式,（单目标）,（双目标）,在端对端模式中，,XM-320,对互补性差胀测量提供监测功能,。,64,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,配置参数,(2),报警编号,报警名称,滞值,输出是否生效,作用的测量值,最小和最大量程值,是否生效,报警条件,继电器编号,继电器名称,是否锁定,是否生效,继电器激活延时,激活逻辑,激活条件,安全或者非安全模式,报警高级设置,报警参数,继电器参数,输出参,数,65,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,六路,4-20mA,输出,六通道输入,(,动态信号,),六通道缓冲输出,DeviceNet,通讯,Redundant Power Input,串口通讯接口,XM-160,通频振动监测模块,I/O,66,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM-161,六,通道振动变送器，,4-20mA,输出,六通道振动变送器,基于,DeviceNet,24VAC,供电,可连接扩展继电器,4-20mA,及缓冲输出,RS,232,串口组态,可与电涡流传感器或加速度传感器配套（另外配置）,67,Copyright 2007 Rockwell Automation,Inc.All rights reserved.,XM-161,接线表：,六路轴振动,Channel 1-2100,19,OUT,3,COM,接,+24V DC,-24V DC,接电源,0,GROUND,Channel 2-2100,21,OUT,5,COM,接,+24V DC,-24V DC,1,GROUND,Channel 3-2100,23,OUT,7,COM,接,+24V DC,-24V DC,接电源,2,GROUND,Channel 4-2100,25,OUT,9,COM,接,+24V DC,-24V DC,接电源,41,GROUND,Channel 5-2100,27,OUT,11,COM,接,+24V DC,-24V DC,接电源,42,GROUND,Channel 6-2100,29,OUT,13,COM,接,+24V DC,-24V DC,接电源,15,GROUND,供电电源,37,24V DC(+),38,24V DC(-),34,24V DC(+)(13ch),50,24V DC(+)(36ch),4-20mA,输出,16,4-20mA 1(+),17,4-20mA 2(+),18,4-20mA 3(+),31,4-20mA 4(+),32,4-20mA 5(+),33,4-20mA 6(+),DevicNet,输出,44,CAN_High(white wire),45,CAN_Low(blue wire),46,CAN Shield(bare wire),47,DNet V(+)(red wire),48,DNet V(-)(black
