西子奥的斯FOVF.ppt

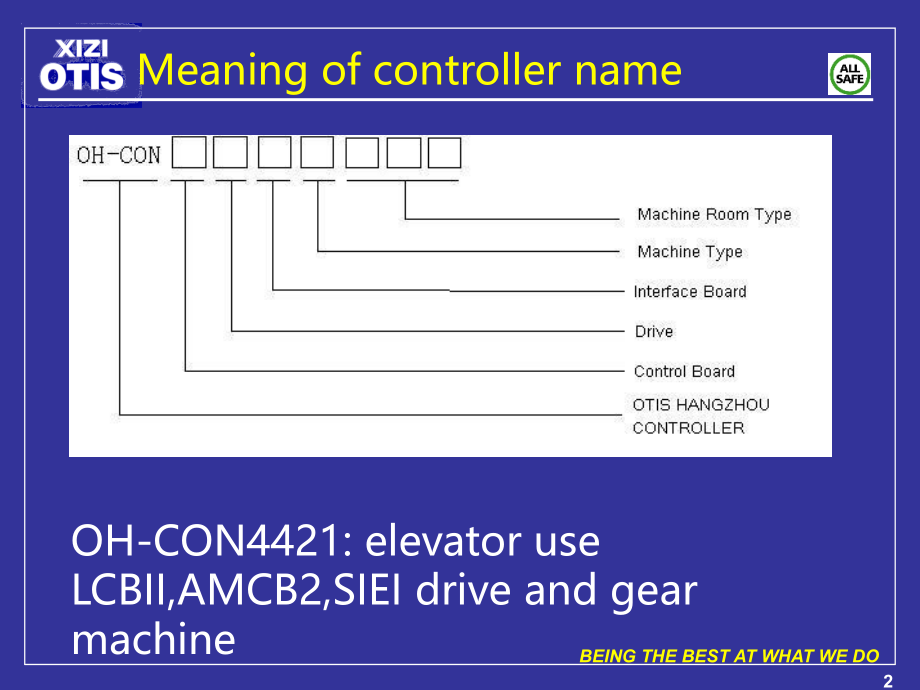

BEING THE BEST AT WHAT WE DO,*,FOVF Control System Introduction,OH-CON4421 System,XOEC,2006-3,OH-CON4421:elevator use LCBII,AMCB2,SIEI drive and gear machine,Meaning of controller name,System introduce,LCBII,Setting of LCBII installation parameters of OH-CON4421 system is similar to MCS220M system|,LSVF-W drive modelM1-3-1-4Drive:17 if ADO,set to 16,Two sensors for DZ signalM1-3-1-6DZ-TYP:1Th,e distance of two sensors is about 60mm,and the length of vane is 250mm,LCBII Parameters Setting,LSVF_W:DS Codes,DS1,DS2,DS3,Remark,1,1,1,Stop,and,drive ready,1,1,0,Run,speed,Ent No-Esc,STARTUP,Save config,？,When finished the autotune,press,key,the keypad,will display:,Press the,Enter key,then press the,key,twice,After finished the autotune,press the,Enter key,to save the autotune parameters,AMCB2 interface board,The function is similar to MCB of MCS220M controller,It is a interface board between LCBII and SIEI drive.It receive the common form LCBII,then out put the speed curve to drive,Before the normal run,the hoistway Self-study must have been done,AMCB2,AMCB2 have 5 keys located below the display:,enter,:back,:shift P and F menu,:add the parameters value,:reduce the parameters value,Enter,：,enter the F menu;conform the modification,Keys of AMCB2,AMCB2 terminals,assignment,Terminal,Pins,designation,Remark,JP1,8,Drive,A+,A-,B+,B-,0V,Vacant,Encode,JP2,5,Drive/exterior,DFC,INS,VF-Fault,SW,BY,JP3,4,Hoistway,1LV,2LV,1LS,2LS,sensors,JP4,5,-,-,-,JP5,5,LCBII,V1,V2,V3,V4,DO,V code,JP6,4,Power,30V,30V,0V,0V,Power,JP7,8,relay,DO(NO,NC,COM),BY(NO,NC,COM),SW(NO,COM),Relay,JP8,6,LCBII,DS1,DS2,DS3,IP,1LV,2LV,JP9,8,Drive,Enable,Fwd,Rev,Vacant,COM,SPEED,PRETOQUE,0V,Terminals of AMCB2,Before the hoistway,Self-study,you must conform the following items,：,Finished the motor autotune,conform all connect wire use for autotune have removed the short wiring,Parameters of drive and AMCB2 have finished setting,the elevator can run in inspection mode,Enter to the F menu of amcb2,and set the F24 to 0.the parameter only allow the elevator to inspection and learn run,Hoistway Self-study,Hoistway,Self-study,switch the ERO to normal,set the parameter F0 of AMCB2 to 0,then press the Enter key to start,The car run down to bottom floor with low speed,then run up till the top floor to finish the hoistway Self-study,After hoistway self-study,the parameter F24 of AMCB2 will set to 1 automatically,You can get the self-study parameter form AMCB2:P1P32:floor distanceP34P35:1LS and 2LS distanceP36:length of vaneP37:the distance of two sensors,Any question,
